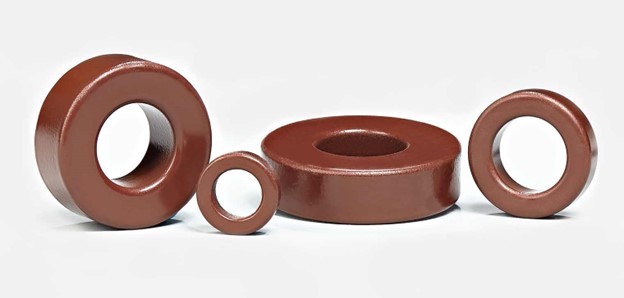

XFlux Ultra Powder Cores
- Technologie
- Pulverkerne
- Partner
- Magnetics Inc.
XFlux® Ultra cores are engineered to deliver outstanding performance where high power and efficiency are critical. Building on the trusted high saturation capabilities of standard silicon-iron XFlux, XFlux® Ultra provides a significant 20% reduction in core losses, resulting in lower heat generation and improved overall system efficiency.
This enhanced core material is ideally suited for demanding applications such as high-efficiency uninterruptible power supplies (UPS), high-power switch-mode power supplies (SMPS), and power factor correction (PFC) circuits for on-board chargers (OBC) in electric vehicles. By minimising energy losses and supporting higher operating frequencies, XFlux® Ultra helps designers achieve more compact, lightweight, and reliable power systems that meet today’s stringent energy standards.
Range features
A high level over view of what this range offers
- Composition – Made from high-performance iron-silicon (Fe–Si) alloy for excellent magnetic properties and low core losses
- Shapes available – Toroid, E, EQ, LP, Block, Cylinder, EER, and U shapes to support a wide range of transformer and inductor designs
- Size range – Available in sizes from 13.5 mm up to 134 mm outer diameter to meet diverse power requirements
- Permeability options – Offered in standard permeability grades of 26µ and 60µ to match different frequency and saturation needs
- Coating colour – Supplied with a durable brown coating for insulation and easy identification
