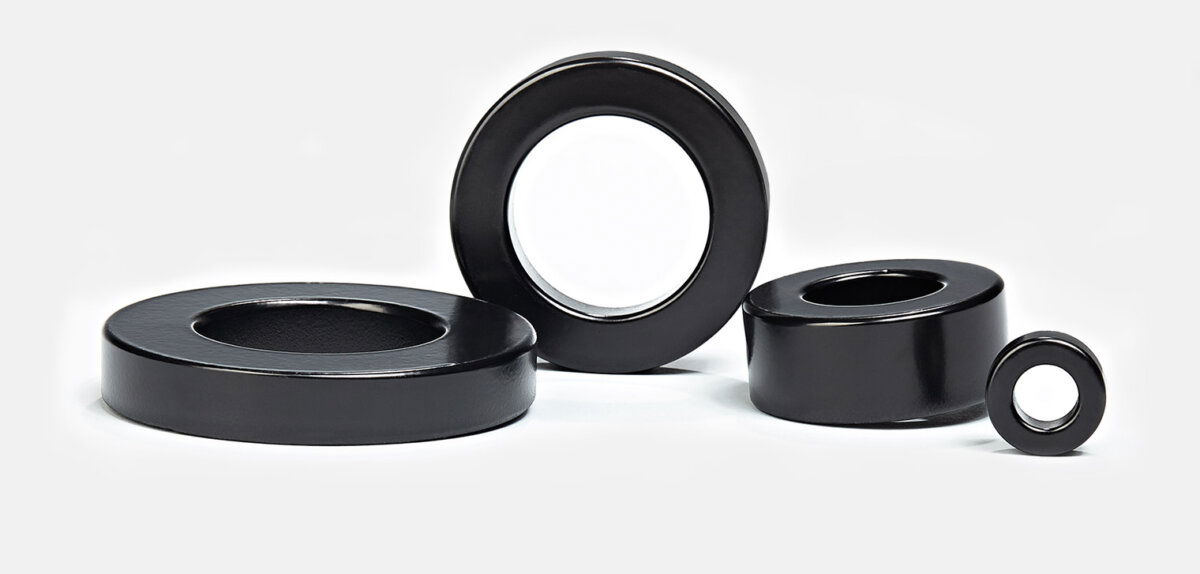

Kool Mµ Hƒ-Pulverkerne bestehen aus lückenverteiltem Legierungspulver, optimiert für Frequenzen von 200-500kHz. Sie weisen im Vergleich zu Kool Mµ etwa 35% geringere Verluste und eine 20% höhere Gleichstrom-Vormagnetisierung auf.
Kool Mµ Hƒ ist eine kostengünstige Lösung zur Minimierung von Leistungsverlusten in Hochfrequenz-Stromversorgungen unter Verwendung von GaN oder SiC, in hocheffizienten Stromversorgungen und in unterbrechungsfreien Stromversorgungen (UPS).

Eigenschaften
- Advanced FeSiAl powder material
- Lowest available core losses
- High-frequency range: 60µ usable up to 30MHz
- Available permeabilities: 19, 26, and 60
- Improved DC-Bias compared to Kool Mµ
- Relatively inexpensive
- Saturation flux density 1.0T
- Curie temperature: 500°C
- Applications:- GaN and SiC converters- Uninterruptable power supplies (UPS)- Highly efficient power supplies
Verfügbare Modellvariationen
Alle verfügbaren Varianten und ein Vergleich ihrer Spezifikationen
Model | Size (finished) (OD × ID × HT) | A L (nH/N2) 26µ | A L (nH/N2) 60µ | Le (cm) | Ac (cm2) | Vol (cm3) |
---|---|---|---|---|---|---|
050 | 13.5 x 6.99 x 5.51 | 12 | 27 | 31.2 | 10.9 | 340 |
120 | 17.3 x 9.53 x 7.11 | 15 | 35 | 41.2 | 19.2 | 791 |
380 | 21.1 x 12.1 x 7.11 | 19 | 43 | 41.4 | 23.2 | 960 |
206 | 23.6 x 13.3 x 8.4 | 14 | 32 | 50.9 | 22.1 | 1120 |
310 | 24.3 x 13.8 x 9.7 | 19 | 43 | 56.7 | 31.7 | 1800 |
350 | 27.7 x 14.1 x 11.9 | 22 | 51 | 58.8 | 38.8 | 2280 |
930 | 33.7 x 19.5 x 11.4 | 32 | 75 | 63.5 | 65.4 | 4150 |
548 | 33.7 x 19.5 x 11.4 | 28 | 61 | 81.4 | 65.6 | 5340 |
585 | 35.2 x 22.6 x 9.8 | 16 | 38 | 89.5 | 46.6 | 4150 |
324 | 36.7 x 21.5 x 11.4 | 24 | 56 | 89.8 | 67.8 | 6090 |
254 | 40.8 x 23.3 x 15.4 | 35 | 81 | 98.4 | 107 | 10600 |
