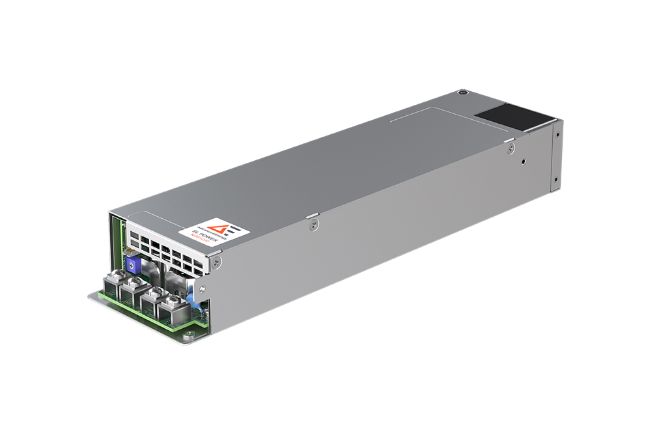

Introducing the NGB1200 series AC to DC power supplies features ITE and medical safety approvals, offering a choice of three single output models, with voltages of 12 V, 24 V, or 48 V.
Each model also provides a 5 V standby output. NGB1200 series power supplies provide 1200 W of output power, and have a typical full load power conversion efficiency of 90%.
All models have output overvoltage, short circuit and overload protection and a 3 x 10.8 x 1.6 inch form factor.
Features
- Output Power of 1200 W
- 3” W x 10.5” L x 1.6” H Size
- Universal 85 to 264 VAC Input Range
- -20ºC to 70ºC Operating Temperature Range
- Less than 100 uA Leakage Current
Benefits
- Meets Class B Emissions Levels
- 10+ Years Electrolytic Capacitor Life
- Meets IEC/UL/EN60601-1-1, 3rd Edition
- IEC/UL/EN62368-1 Approved
- Meets 4th Edition/Heavy Industrial EMC
- Class I Input versions available
- 3 Years Warranty
Téléchargements
pour NGB1200 series
| Output Power (W): | Value |
|---|---|
Output Power (W): | 1200 |
Length (Inches): | 10.8 |
Width (Inches): | 3 |
Height (Inches): | 1.6 |
Mounting Type: | Embedded PSU |
Minimum Output Current (A): | 25 |
Maximum Output Current (A): | 100 |
Output Voltage Range (V): | 12V to 48V |
Minimum Output Power (W): | 1200 |
Maximum Output Power (W): | 1200 |
Maximum Input Voltage (V): | 264 |
Warranty (Years): | 3 |
| Description | Min. Voltage (V) | Max. Voltage (V) | Current (A) | Nominal Voltage (V) | Number of Outputs | |
|---|---|---|---|---|---|---|
NGB1200S12K | 12V @ 100A Class I | 11.4 | 12.6 | 100 | 12 | 1 |
NGB1200S24K | 24V @ 50A Class I | 22.8 | 25.2 | 50 | 24 | 1 |
NGB1200S48K | 48V @ 25A Class I | 45.6 | 50.4 | 25 | 48 | 1 |
