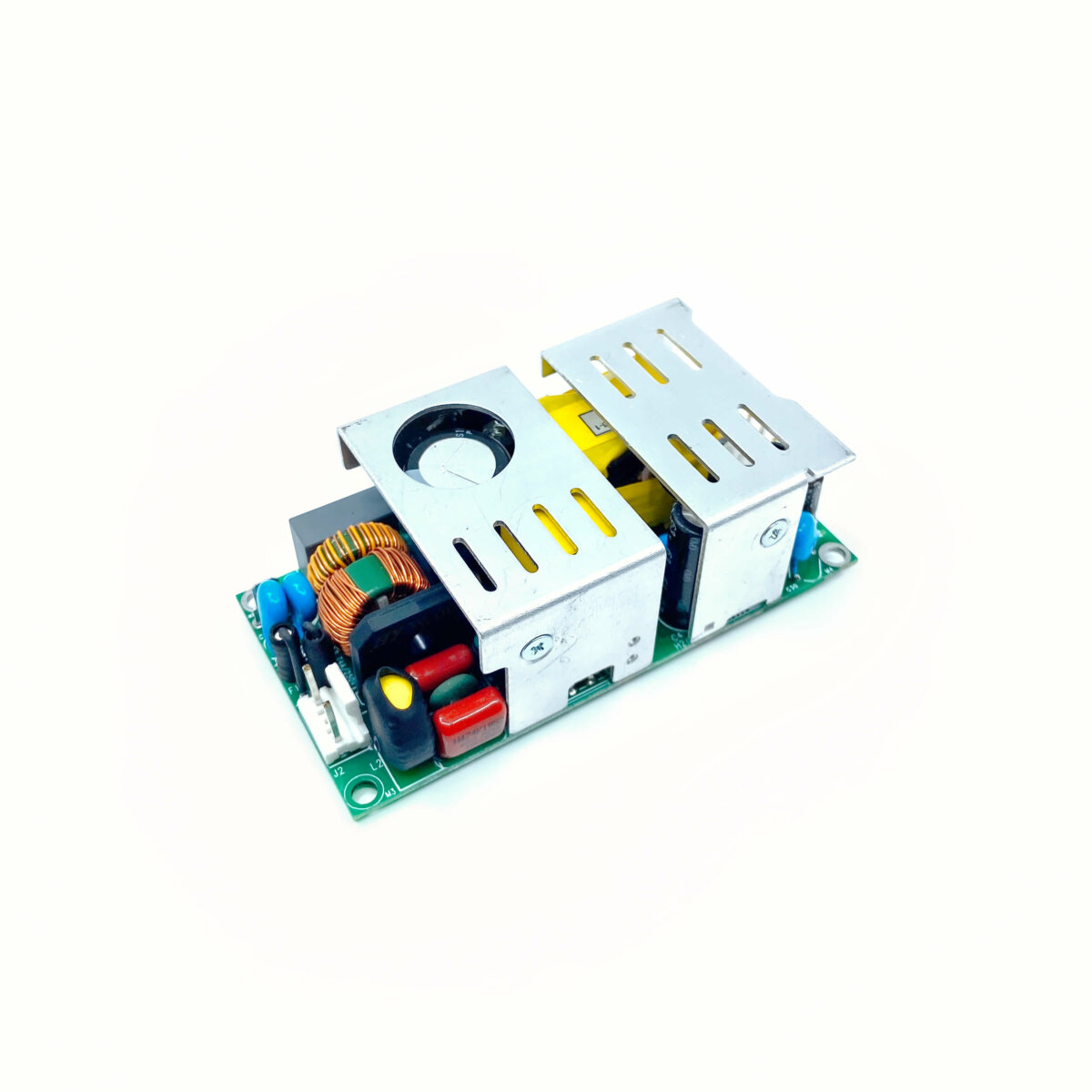

SLB125 series
- Technologie
- Offene / u-frame Stromversorgungen
- Partner
- Advanced Energy
Advanced Energy’s SL Power SLB125 series of medically approved AC-DC power supplies offer a variety of output voltages, including 12 V, 15 V, 18 V, 24 V, 36 V, 48 V, and 56 V. These units provide up to 125 W of power with adequate airflow and come equipped with overvoltage, short circuit, and overload protection to ensure reliable performance.
With a compact 2 x 4 x 1.2 inch design, the SLB125 models are ideal for medical applications that require efficient, space-saving power solutions while maintaining strict safety and performance standards.
Features
- Small size of 2” X 4” X 1.2”
- 2 x MOPP isolation
- 85 W convection cooled
- 125 W with 200 LFM airflow
- -20˚C to 70˚C operating temperature range
- Universal input 80 to 264 VAC
Benefits
- UL/CSA/IEC/IEC60601-1, IEC62368-1 approved
- For 1U applications
- Meets 4th edition/heavy industrial EMC
- 3 years warranty
Downloads
für SLB125 series
| Specifications | Value |
|---|---|
Output power (W) | 125 |
Length (inches) | 4 |
Width (inches) | 2 |
Height (inches) | 1.2 |
Mounting type | Embedded PSU |
Minimum output current (A) | 2.2 |
Maximum output current (A) | 9.8 |
Output voltage range (V) | 12V to 5V6 |
Minimum output power (W | 118 |
Maximum output power (W) | 125 |
Maximum input voltage (V) | 264 |
Warranty (years): | 3 |
| Model number | Min. voltage (V) | Max. voltage (V) | Current (A) | Nominal voltage (V) | Number of outputs |
|---|---|---|---|---|---|
SLB125S12C | 12 | 12 | 7.1 | 12 | 1 |
SLB125S12K | 12 | 7.1 | 12 | 1 | |
SLB125S15C | 15 | 15 | 5.6 | 15 | 1 |
15 | 15 | 5.6 | 15 | 1 | |
SLB125S18C | 18 | 18 | 4.7 | 18 | 1 |
SLB125S18K | 18 | 18 | 4.7 | 18 | 1 |
SLB125S24C | 24 | 24 | 3.6 | 24 | 1 |
SLB125S24K | 24 | 24 | 3.6 | 24 | 1 |
SLB125S48C | 48 | 48 | 1.8 | 48 | 1 |
SLB125S48K | 48 | 48 | 1.8 | 48 | 1 |
