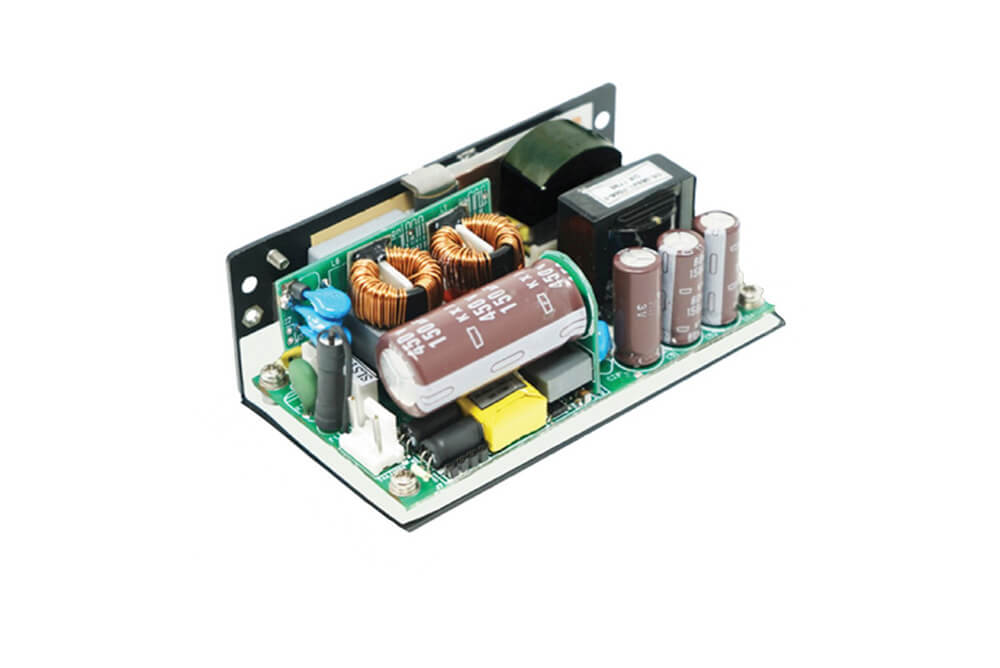

NGB250 series
- Technologie
- Offene / u-frame Stromversorgungen
- Partner
- SL Power Electronics / Advanced Energy
Advanced Energy’s SL Power NGB250 medically-approved AC-DC power supplies offer main output options of 12 V, 15 V, 24 V, 28 V, 48 V, and 56 V. Capable of delivering up to 250 W with proper airflow, each model includes built-in protections against overvoltage, short circuits, and overloads. Featuring a compact 4 x 2 x 1.5 inch design, these power supplies are well-suited for applications where space is limited.
Features
- Output power of up to 250 W with airflow, only derating to 180 W convection cooled
- 4” W x 2” L x 1.4” H size
- Universal 85 to 264 VAC Input Range Less than 100 uA Leakage Current
Benefits
- Meets heavy industrial/IEC60601-1-2 4th edition EMC requirements
- Meets Class B emissions levels
- Class I and Class II Input versions available
- Greater than 7 years electrolytic capacitor life 3 year warranty
- Approved to IEC60601-1, 3rd edition & EN/IEC/UL62368-1
| Specifications | Value |
|---|---|
Output power (W) | 250 |
Length (inches) | 4.06 |
Width (inches) | 2.13 |
Height (inches) | 1.5 |
Mounting type | Embedded PSU |
Minimum output current (A): | 5.2 |
Maximum output current (A): | 19.1 |
Output voltage range (V): | 12V to 56V |
Minimum output power (W): | 145 |
Maximum output power (W): | 250 |
Maximum input voltage (V): | 264 |
Warranty (years): | 3 |
| Model number | Min. voltage (V) | Max. voltage (V) | Current (A) | Nominal voltage (V) | Number of outputs |
|---|---|---|---|---|---|
NGB250S12C | 19.1 | 12 | 1 | ||
NGB250S12K | 11.4 | 12.6 | 19.1 | 12 | 1 |
NGB250S15C | 14.25 | 15.75 | 15.3 | 15 | 1 |
NGB250S15K | 14.25 | 15.75 | 15.3 | 15 | 1 |
NGB250S24C | 22.8 | 25.2 | 10.4 | 24 | 1 |
NGB250S24K | 22.8 | 25.2 | 10.4 | 24 | 1 |
NGB250S48C | 45.6 | 50.4 | 5.2 | 48 | 1 |
NGB250S48K | 45.6 | 50.4 | 5.2 | 48 | 1 |
