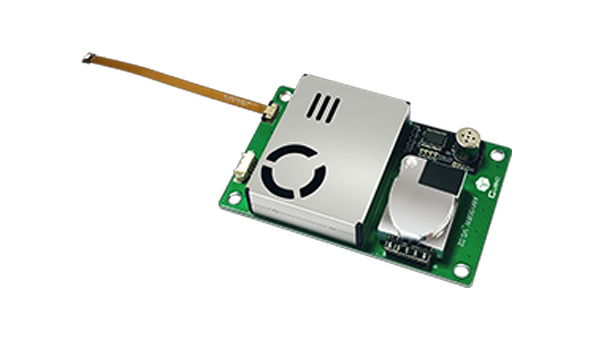

AM Series Integrated IAQ Modules

Diese hochintegrierten Sensor-Module für die Raumluftqualität können flüchtige organische Verbindungen, CO2 und Partikelkonzentrationen in Innenräumen sowie relative Luftfeuchtigkeit und Temperatur in Echtzeit messen. Sie bieten eine hohe Genauigkeit und stabile Leistung in einem kompakten Design. Diese Module sind einfach zu installieren, mit einer digitalen UART/l2C-Schnittstelle und optionalen Anschlussmöglichkeiten. Diese Module sind ideal für Anwendungen wie IAQ-Überwachung, Klimaanlagen-/HVAC-Systeme, Luftreiniger und Belüftungs­systeme.

AM Series Integrated IAQ Modules

Eigenschaften

  • Uses laser scattering NDIR technology
  • Digital interface UART/I2C
  • With voltage regulator design and EMC compliant, strong anti-static ability
  • High accuracy and stable performance
  • Covering PM1.0, PM2.5, PM10, CO2, VOC, RH&T
  • These modules can also be customised

Verfügbare Modellvariationen

Alle verfügbaren Varianten und ein Vergleich ihrer Spezifikationen

AM4100-I

Measuring rangeAccuracyAmbient conditionsOperating currentDimensionsLifespan

PM2.5: 0~1000μg/m³

PM2.5: 0~35 μg/m³: ±5μg/m³ >35 μg/m³: ±15% of reading

25°C ±2 , 50±10%RH°C

<300mA (VOC:<80mA/CO2:<120mA/PM2.5:<80mA)

W72H61D25.3(mm)

PM: in the condition of continuous use, lifespan is 22000 hours. CO2: ≥10 years

CO2: 400~2000ppm

Temperature accuracy: ±1°C

25°C ±2 , 50±10%RH°C

<300mA (VOC:<80mA/CO2:<120mA/PM2.5:<80mA)

W72H61D25.3(mm)

PM: in the condition of continuous use, lifespan is 22000 hours. CO2: ≥10 years

VOC: 0 to 3 Level

Humidity accuracy: ±5%RH

25°C ±2 , 50±10%RH°C

<300mA (VOC:<80mA/CO2:<120mA/PM2.5:<80mA)

W72H61D25.3(mm)

PM: in the condition of continuous use, lifespan is 22000 hours. CO2: ≥10 years

Temperature: -20 ~60°C rH: -30%~80% rH (non-condensing)

Humidity accuracy: ±5%RH

25°C ±2 , 50±10%RH°C

<300mA (VOC:<80mA/CO2:<120mA/PM2.5:<80mA)

W72H61D25.3(mm)

PM: in the condition of continuous use, lifespan is 22000 hours. CO2: ≥10 years

AM1008W

Measuring rangeAccuracyAmbient conditionsOperating currentDimensionsLifespan

PM2.5: 0~1000μg/m³

PM2.5: 0~35 μg/m³: ±5μg/m³ >35 μg/m³: ±15% of reading

25°C ±2 , 50±10%RH°C

<300mA (VOC:<80mA/CO2:<120mA/PM2.5:<80mA)

W72H61D25.3(mm)

PM: in the condition of continuous use, lifespan is 22000 hours. CO2: ≥10 years

CO2: 400~2000ppm

Temperature accuracy: ±1°C

25°C ±2 , 50±10%RH°C

<300mA (VOC:<80mA/CO2:<120mA/PM2.5:<80mA)

W72H61D25.3(mm)

PM: in the condition of continuous use, lifespan is 22000 hours. CO2: ≥10 years

VOC: 0 to 3 Level

Humidity accuracy: ±5%RH

25°C ±2 , 50±10%RH°C

<300mA (VOC:<80mA/CO2:<120mA/PM2.5:<80mA)

W72H61D25.3(mm)

PM: in the condition of continuous use, lifespan is 22000 hours. CO2: ≥10 years

Temperature: -20 ~60°C rH: -30%~80% rH (non-condensing)

Humidity accuracy: ±5%RH

25°C ±2 , 50±10%RH°C

<300mA (VOC:<80mA/CO2:<120mA/PM2.5:<80mA)

W72H61D25.3(mm)

PM: in the condition of continuous use, lifespan is 22000 hours. CO2: ≥10 years
