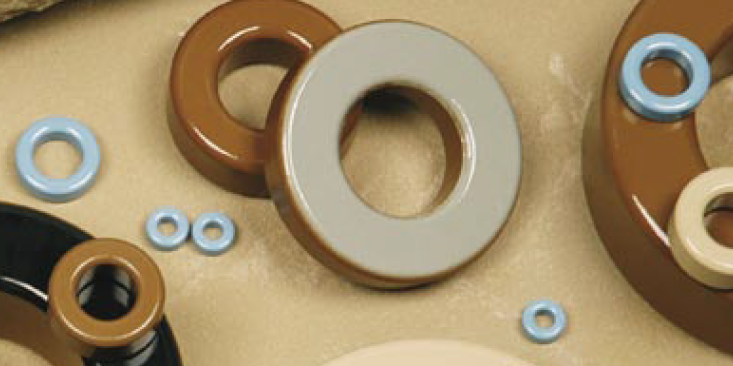

High Temperature and Performance Alloys
- Technologie
- Pulverkerne
- Partner
- Micrometals
Micrometals Magnetlegierungsmaterialien bieten außergewöhnliche Leistung und Zuverlässigkeit und sind speziell für anspruchsvolle Leistungsanwendungen entwickelt, bei denen die Kerne extrem hohe Temperaturen ausgesetzt sind oder erzeugen. Diese kostengünstigen Legierungskernmaterialien unterliegen keiner thermischen Alterung bei Betriebstemperaturen bis zu 200°C.

Eigenschaften
- Available in core sizes from OD 4.06mm up to 165.1mm
- Permeabilities up to 125 (for M125 material)
- No thermal aging and operating temperature up to 200°C
- Available in different shapes
- Very low loss powder materials
- Operating frequencies ≤200kHz
Verfügbare Modellvariationen
Alle verfügbaren Varianten und ein Vergleich ihrer Spezifikationen
Material mix | Reference permeability | Powder type | Density (gm/cm3) | Available shapes | Relative cost | Colour code toroid |
---|---|---|---|---|---|---|
60 | 55 | Silicon-iron | 6.1 | Toroid, E-core, RC core | 2.2 | Brown/black |
61 | 35 | Silicon-iron | 6.1 | Toroid, disc | 2.2 | Brown/grey |
63 | 35 | Silicon-iron | 5.9 | Toroid, E-core, block, I-core | 3.7 | Brown/beige |
65 | 42 | Silicon-iron | 6.1 | HC, IC, ID, SC | 2.0 | Brown/yellow |
66 | 66 | Silicon-iron | 6.2 | Toroid, E-core, block, bus bar, HC, HD, IC, ID, RC, SC, | 2.9 | Brown/brown |
70 | 100 | Nickel-iron | 7.4 | Toroid, E-core | 14 | Beige/black |
M125 | 125 | Molypermalloy | 7.7 | Toroid | 15 | Lt blue/lt blue |
