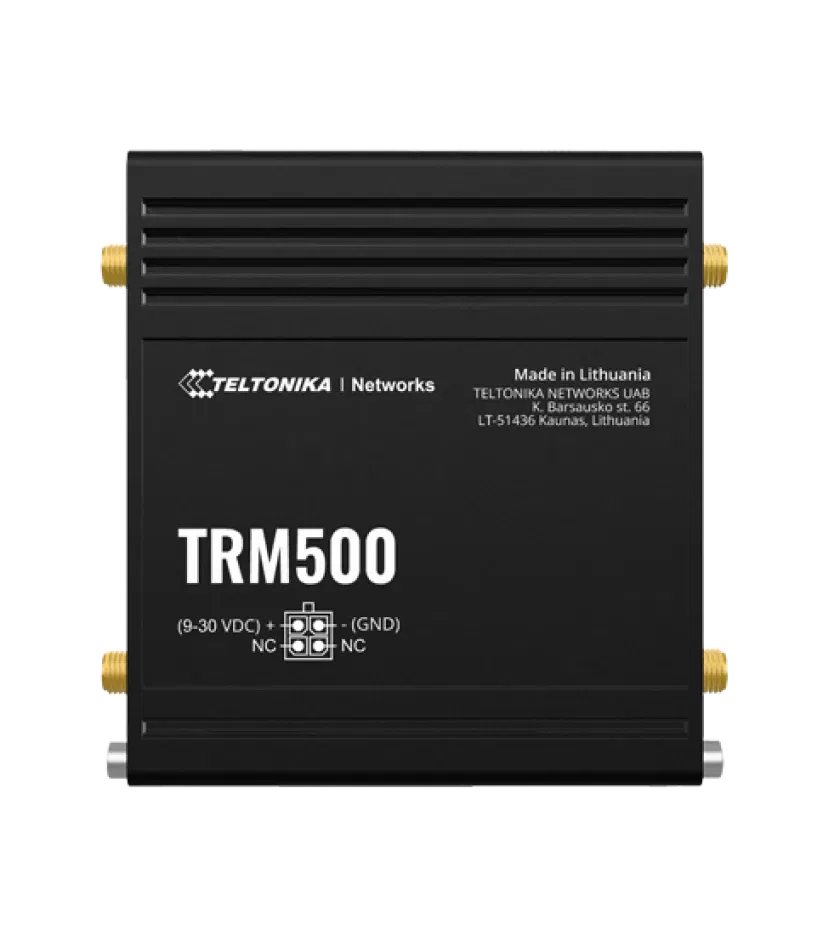

TRM500 5G Sub 6 GHz Modem

The TRM500 is a compact, lightweight 5G modem designed for high-performance industrial applications. It delivers ultra-fast cellular speeds of up to 3.4 Gbps and ensures reliable connectivity with backward compatibility for 4G (Cat 19) and 3G networks. Featuring four SMA connectors for external antennas, it provides extended coverage and flexibility in deployment.

The modem includes a USB Type-C interface, enabling both power and high-speed data transfer through a single cable. Its rugged design and DIN rail mounting support make it ideal for demanding environments and seamless integration into industrial systems.

TRM500 5G Sub 6 GHz Modem

Range features

An overview of what’s in the range

-* 5G connectivity – Ultra-high speeds up to 3.4 Gbps

  • Future-proof – Backward compatible with 4G (Cat 19) and 3G
  • USB Type-C – Single cable for data and power
  • Compact design – Small size for easy installation

What’s in this range?

All the variants in the range and a comparison of what they offer

CategorySpecification

Mobile module

5G Sub-6GHz SA: 2.4Gbps (DL)/900Mbps (UL); 5G NSA Sub-6GHz: 3.4Gbps DL (4×4 MIMO)/ 550 Mbps UL (2×2); 4G (LTE-FDD) – LTE Cat 19 1.6Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL

3GPP Release

Release 16

Connector

1 x 4-pin industrial DC power socket

1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)

Input voltage range

4-pin: 9 – 30 VDC, overvoltage protection, reverse polarity protection, surge protection >35 VDC 10us max

USB Type-C: 5 VDC

Power consumption

Idle: < 5 W, Max: < 12 W

Status LEDs

1 x Power LED, 1 x 5G LED, 1 x Network LED

SIM

1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

Power

1 x 4-pin power connector

1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)

Antennas

4 x SMA for Mobile

Other

1 x Virtual network interface via USB Type-C (For power and network data)

Casing material

Anodised aluminum housing and panels

Dimensions (W x H x D)

83 x 25 x 85.4 mm

Weight

94.5 g

Mounting options

DIN rail, wall mount, flat surface (all require additional kit)

Operating temperature

-40 °C to 75 °C
