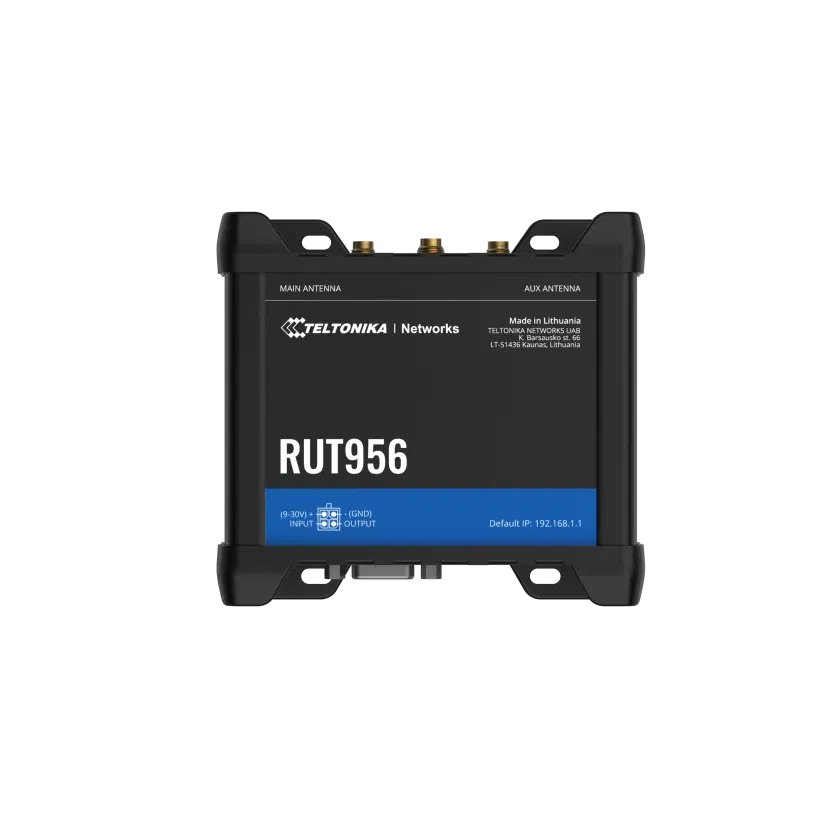

RUT956 4G CAT-4 Router
- Technologie
- Mobilfunk- Modems und Gateways
- Partner
- Teltonika Networks
Der RUT956 ist ein robuster industrieller Router, der nahtlose Konnektivität über Mobilfunk-, Wi-Fi- und kabelgebundene Schnittstellen bietet, mit automatischem WAN-Failover, um einen ununterbrochenen Internetzugang sicherzustellen. Er verfügt über GNSS-Funktionen für präzises Standort-Tracking und beinhaltet serielle Kommunikationsports zur einfachen Integration mit einer Vielzahl industrieller Geräte.
Mit digitalen I/Os und dem fortschrittlichen RutOS-Betriebssystem unterstützt der RUT956 die Automatisierung, die Fernsteuerung von Geräten und Echtzeit-Ereignisbenachrichtigungen.

Merkmale der Produktreihe
Ein Überblick über das, was in der Produktreihe enthalten ist
-
Konnektivität – 4G LTE (Cat 4), 3G, 2G
-
Dual SIM – Auto-Failover, Backup-WAN und flexibles Umschalten
-
Mehrere Schnittstellen – Ethernet, RS232/RS485 und digitale I/Os
-
GNSS – Standortverfolgung und Zeitabgleich über globale Satellitensysteme
Was enthält diese Produktreihe?
Alle verfügbaren Varianten und ein Vergleich ihrer Spezifikationen
Category | Specification |
---|---|
Mobile module | 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps |
3GPP Release | Release 11 |
SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
Status | IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC |
SMS | SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
Block/Allow list | Operator block/allow list (by country or separate operators) |
Multiple PDN | Possibility to use different PDNs for multiple network access and services |
Band management | Band lock, Used band status display |
SIM PIN code management | SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN |
APN | Auto APN |
Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
