PXI/PXIe Chassis

Technologie
PXIe/PXI
Partner
ADLINK

Eine umfassende Produktreihe an Desktop- und Rackmount-Chassis, die die neueste PXIe-Schnittstelle für Hoch­geschwindig­keitsverbindungen verwenden. Adlink bietet PXI- und PXIe-Optionen in einer großen Auswahl an Konfigurationen von 4 bis 19 Slots.

Mit der Ergänzung von neuen Thunderbolt-verbundenen Chassis, die branchenführende Konnektivität und Komfort in einer Desktop-4-Slot-Lösung bieten. Diese Plattform bringt tragbare Prüf- und Messtechnik mit der Ergänzung eines Thunderbolt-ausgestatteten Laptops zum Leben.

PXI/PXIe Chassis

Eigenschaften

Ein Überblick über das Angebot dieser Produktreihe

  • Unterstützung für PXI und PXIe 3.0
  • Fernsteuerung via Ethernet/LAN
  • Chassis-Management
  • Innovative Kühllösung
  • Vielseitige Slot-Optionen
  • Tragbar, Desktop- und Rack-Mount-Angebot
  • Unterstützung für Windows-Betriebssysteme
  • Integrierte Taktgeber- und Synchronisationsbusse
  • System-Taktslot
  • Vollständig kompatibel mit cPCI I/O-Modulen

Verfügbare Modellvariationen

Alle verfügbaren Varianten und ein Vergleich ihrer Spezifikationen.

ModelDescriptionPXI/PXIeKey featuresForm factor

PXES-2314T

Compact 4-slot Thunderbolt™ 3 PXI Express™ Chassis

PXIe

Dual Thunderbolt™ 3 ports for host PC connection

40Gb/s Thunderbolt™ 3 bandwidth

USB Power Delivery up to 60W

Four PXI Express Hybrid Slot

Programmable Trigger I/O port

Smart fan and chassis status monitoring

3U

PXES-2785

18-Slot 3U 24GB/s PXI Express Chassis – Up to 8 GB/s, 50W power and cooling capacity per slot

PXIe

PXI™-5 PXI Express hardware specification Rev.1.0 compliant

18-slot PXI Express chassis with one system slot, one system timing slot, six hybrid peripheral slots, and ten PXI Express peripheral slots

PXI Express System Slot routed as 2 Link Configuration x8 x16

Up to 24 GB/s (PCI Express 3.0 x8 x16 link) system bandwidth

0°C to 55°C extended operating temperature range

Replaceable maintenance unit with fan and power supply unit

Low-jitter internal 10/100 MHz reference clock for PXI/PXI Express slots with ± 1 ppm stability

Variable speed fan controller optimizes cooling and acoustic emissions, and inhibit connector for remote power button and voltage monitor

3U

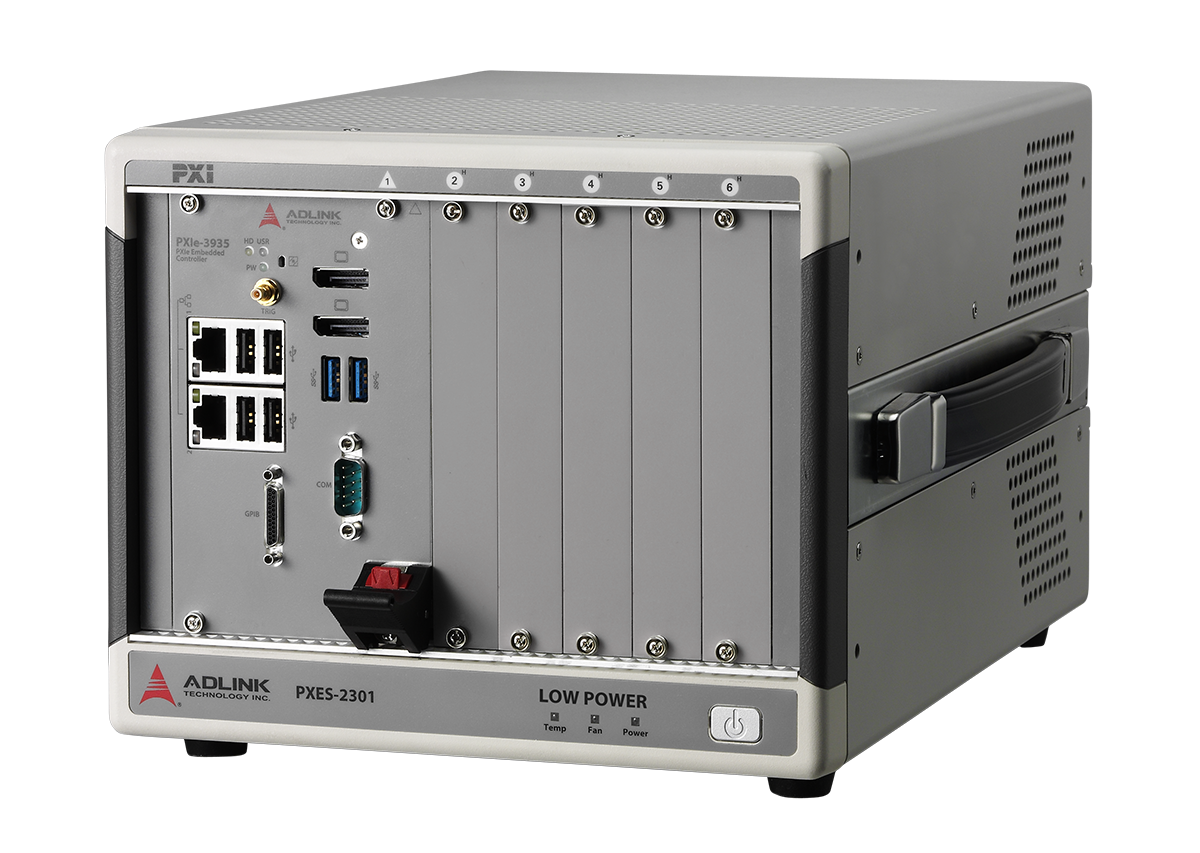

PXES-2301

6 All-Hybrid Slot 3U PXIe Chassis; AC Powered with Up to 8GB/s System Bandwidth

PXIe

Entry level platform provides an ideal balance between performance and price point

Compact half-rack with bi-directional setup for portable application in a wide variety of testing environments

Replaceable modular cooling fan reduces maintenance requirements

High per-slot cooling capacity up to 38W

Intelligent chassis management with automatic fan speed control and temperature/power status monitoring

System bandwidth up to 8GB/S & peripheral bandwidth up to 2GB/s for all slots

3U

PXES-2780

18-Slot 3U PXI Express Chassis with AC – Up to 8 GB/

PXIe

18-slot PXI Express chassis with one system slot, one system timing slot, 10 hybrid peripheral slots, and 6 PXI Express peripheral slots

Configurable PCIe switch fabric, can be configured as four-link, two-link, PXI Express chassis

Up to 8 GB/s system bandwidth and Up to 4 GB/s peripheral bandwidth for dedicated slots

Intelligent chassis management: automatic fan speed control, chassis status monitoring and reporting, remote chassis power on/off control

BNC connectors for 10 MHz clock input/output

Innovative cooling mechanism dissipates 38.2W for each peripheral slot

Maximum total usable power of 800 W under 55°C

3U

PXES-2590

9-Slot 3U PXI Express Chassis with AC – Up to 8GB/s, All Hybrid

PXIe

9-slot PXI Express chassis with one system slot, one system timing slot, and seven hybrid peripheral slots

PXI™-5 PXI Express hardware specification Rev.1.0 compliant

Four-link PXI Express chassis

Up to 8 GB/s system bandwidth & up to 2 GB/s peripheral bandwidth for all slots

0°C to 55°C extended operating temperature range, maximum total usable power is 400 W under 55°C

Intelligent chassis management: Automatic fan speed control, Chassis status monitoring and reporting & Remote chassis power on/off control

BNC connectors for 10 MHz clock input/output

Power, temperature, and fan monitoring LEDs

3U

PXIS-2719A

19-Slot 3U PXI Chassis with AC

PXI

PXI Hardware Specification Rev. 2.2 compliant

Rack-mountable 19-slot PXI chassis with one system slot and eighteen PXI/CompactPCI peripheral slots

Advanced forced-cooling mechanism for efficient and uniform heat dissipation

External 10 MHz reference clock input via BNC connector

0°C to 55°C extended operating temperature range

Intelligent chassis monitoring/control: Automatic fan speed control, chassis status monitoring /exporting and remote chassis power on/off control

600W industrial-grade AC power supply

Power, temperature and fan monitoring LEDs

3U
