De geïsoleerde DC-DC-brick-omvormers van Advanced Energy’s Artesyn bieden hoogwaardige, betrouwbare stroomoplossingen voor telecommunicatie- en draadloze infrastructuurtoepassingen. Het brede spectrum van stroombehoeften van 35 W tot 1300 W wordt gedekt door dit productassortiment, dat zestiende-, achtste-, kwart-, halve- en volledige bricks omvat. Elke omvormer is ontworpen voor hoge prestaties en flexibiliteit, met opties voor een open frame, oppervlaktemontage of doorlopende aansluitingen en optionele bodemplaten voor verbeterd thermisch beheer.
Deze omvormers zijn geoptimaliseerd voor het leveren van gereguleerde DC met laag ruis voor RF-vermogensversterkers en gevoelige telecommunicatiecircuits, waardoor ze ideaal zijn voor pico-, micro- en macrobasisstations en andere draadloze toepassingen.

Kenmerken van het assortiment
Een hoog niveau overzicht van wat dit assortiment biedt
-
Breed Vermogensbereik: Van 35 W tot 1300 W om aan een verscheidenheid aan telecommunicatiebehoeften te voldoen.
-
Meerdere Brick-formaten: Zestiende- tot volledige brick-groottes voor optimale printplaatruimtebenutting.
-
Hoge Efficiëntie: Geavanceerd ontwerp voor efficiënte energieomzetting, vermindering van warmte en vermogensverlies.
-
Laag Geluidsniveau Uitgang: Speciaal ontworpen voor RF- en signaalgevoelige toepassingen.
-
Flexibele Montageopties: Verkrijgbaar in zowel oppervlaktemontage als doorlopende varianten.
-
Optionele Bodemplaten: Verbeteren de warmteafvoer in veeleisende thermische omgevingen.
-
Brede Ingangsspanningsbereiken: Geschikt voor mondiale telecom en datacom standaarden.
-
Robuust Thermisch Ontwerp: Ondersteunt werking onder zware omstandigheden met effectieve koeling.
-
Bewezen Betrouwbaarheid: Gebouwd om te voldoen aan industriestandaarden voor langdurige betrouwbare werking.
-
Modulaire Schaalbaarheid: Eenvoudige integratie in bestaande telecommystemen, van pico- tot macro-basisstations.
Wat zit er in het assortiment? Alle varianten in het assortiment en een vergelijking van wat ze bieden
Part number | Power output | Brick size | Mounting type | Input voltage range | Key feature / application |
---|---|---|---|---|---|
ADC100 | 100 W | Eighth | Through-Hole | 36–75 V | Telecom RF amplifier power |
ADH700 | 700 W | Half | Through-Hole | 36–75 V | High power base station use |
ADO300 | 300 W | Quarter | Through-Hole | 36–75 V | General telecom usage |
ADO500 | 500 W | Quarter | Through-Hole | 36–75 V | High-efficiency isolated supply |
ADQ600 | 600 W | Quarter | Surface-Mount | 36–75 V | Open-frame or baseplate available |
ADQ600B | 600 W | Quarter | Through-Hole | 36–75 V | Baseplate-enhanced thermal option |
ADQ700 | 700 W | Quarter | Through-Hole | 36–75 V | Low-noise for RF power |
ADQ800 | 800 W | Quarter | Through-Hole | 36–75 V | Peak power for demanding applications |
AGF600 | 600 W | Full | Through-Hole | 36–75 V | High power RF amplifier supply |
AGF700 | 700 W | Full | Through-Hole | 36–75 V | Enhanced output stability |
AGF800 | 800 W | Full | Through-Hole | 36–75 V | Optimized for macro base stations |
AGF800 Dual | 800 W | Full | Through-Hole | 36–75 V | Dual-output for redundancy |

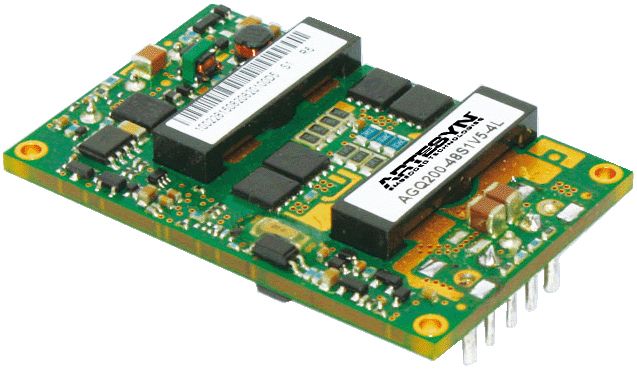

AGQ200 | 200 W | Quarter | Surface-Mount | 36–75 V | Compact, efficient design |
AGQ500 | 500 W | Quarter | Through-Hole | 36–75 V | Standard telecom infrastructure use |
ALD 35W | 35 W | Sixteenth | Through-Hole | 36–75 V | Entry-level low-power option |
ALD 60W | 60 W | Sixteenth | Through-Hole | 36–75 V | Compact board-fit solution |
ALO 100W | 100 W | Eighth | Surface-Mount | 36–75 V | Open-frame design for airflow |
ALO 66W | 66 W | Eighth | Surface-Mount | 36–75 V | Cost-effective telecom supply |
AVD100 | 100 W | Eighth | Through-Hole | 36–75 V | Standard telecom DC converter |
AVD200 | 200 W | Quarter | Through-Hole | 36–75 V | Broad compatibility |
AVD50 | 50 W | Sixteenth | Through-Hole | 36–75 V | Compact telecom application |
AVD50B | 50 W | Sixteenth | Through-Hole | 36–75 V | Baseplate-enhanced for thermal management |
AVD75 | 75 W | Eighth | Through-Hole | 36–75 V | High density, compact form |
AVD75B | 75 W | Eighth | Through-Hole | 36–75 V | Optional baseplate available |
AVD85 | 85 W | Eighth | Through-Hole | 36–75 V | Telecom-specific performance |
AVD85B | 85 W | Eighth | Through-Hole | 36–75 V | Improved cooling with baseplate |
AVE350 | 350 W | Half | Through-Hole | 36–75 V | Balanced power and size |
AVE350B | 350 W | Half | Through-Hole | 36–75 V | With baseplate for better heat control |
AVE450/500 | 450–500 W | Half | Through-Hole | 36–75 V | Versatile and reliable |
AVE700 | 700 W | Half | Through-Hole | 36–75 V | Ideal for high-demand telecom circuits |
AVO100 | 100 W | Eighth | Surface-Mount | 36–75 V | Cost-efficient open-frame option |
AVO200 | 200 W | Quarter | Surface-Mount | 36–75 V | Telecom-grade performance |
AVO240 | 240 W | Quarter | Surface-Mount | 36–75 V | Mid-range compact solution |
AVO250 | 250 W | Quarter | Surface-Mount | 36–75 V | Enhanced density and reliability |
AVO50 | 50 W | Sixteenth | Surface-Mount | 36–75 V | Lightweight, low power |
AVO75 | 75 W | Eighth | Surface-Mount | 36–75 V | For compact telecom modules |
AVQ100 | 100 W | Quarter | Through-Hole | 36–75 V | Isolated converter for flexible integration |
AVQ100 wide-range | 100 W | Quarter | Through-Hole | 18–75 V | Ultra-wide input for global use |
AVQ200 | 200 W | Quarter | Through-Hole | 36–75 V | Enhanced stability |
AVQ300 | 300 W | Quarter | Through-Hole | 36–75 V | Popular in base station builds |
AVQ400 | 400 W | Quarter | Through-Hole | 36–75 V | High output in compact design |
BDQ1300 & BCQ1300 | 1300 W | Full | Through-Hole | 36–75 V | Highest output for macro telecom systems |
NDQ900 | 900 W | Full | Through-Hole | 36–75 V | Robust macro base station solution |
