Embedded Rail Systems and Panel PCs

Technologie
Rugged
Partner
ADLINK

Adlink biedt een toonaangevend portfolio van cPCI, extreem robuuste, AI-gebaseerde intelligente systemen en paneel-pc’s die zijn gecertificeerd voor toepassingen langs het spoor en in treinen. Deze kant-en-klare producten maken een snelle implementatie en ontwikkeling mogelijk. Gecertificeerd en getest in een reeks praktijkprojecten in de spoorwegsector, waaronder ATO/DMI-oplossingen aan boord en CTC/RBC/TSRS-oplossingen langs het spoor. Deze modulaire platforms worden ondersteund door EN-50155-certificering en AI-edge-mogelijkheden met NVIDIA GPU’s, waardoor ze toonaangevend zijn. De toevoeging van AI-mogelijkheden vergroot de mogelijkheden van deze producten, waardoor ze ideaal zijn voor:

● Passagiersinformatiesystemen ● Inbraakdetectie op spoorwegen ● Bewaking van treinstations ● Videobeveiliging aan boord ● Detectie van gevaren op spoorwegen

Embedded Rail Systems and Panel PCs

Kenmerken van het assortiment

Een overzicht op hoog niveau van wat dit assortiment te bieden heeft

  • EN50155 6U en 3U cPCI-opties
  • Platforms met en zonder ventilator beschikbaar
  • Extreem robuust, EN50155-gecertificeerd
  • Aangepaste rail cPCI-configuraties
  • AI-compatibele analyseplatforms
  • Panel-pc’s voor treinbesturing en signalering
  • Gecentraliseerde verkeersregelingsoplossingen
  • Passagiersinformatiesystemen
  • Oplossingen voor het innen van vergoedingen
  • ATO-aanbod

Wat zit er in dit assortiment?

Alle varianten in het assortiment en een vergelijking van wat ze bieden

ModelDescriptionPSUKey componentsForm factor

AVA-5500 Series

Rugged, Fanless AIoT Platform with NVIDIA Quadro® GPU Embedded for Real-time Video/Graphics Analytics

+24V/+36V/+72V/+110VDC nominal power input (16.8V to 137.5V, EN50155 compliant)

6th/7th Gen Intel® Core™ i7 Processors and NVIDIA Quadro® GPU MXM 3.1 Type A/B module on PCI Express x16

8x M12 GbE (4x PoE), 4x RS-422, 4x USB 3.0, 1x DVI-I, 4x DisplayPort with lockable connectors

Multiple storage options: 2x 2.5" SATA 6.0 Gb/s drive bays, 1x M.2 2280 slot, 1x CFast socket

GNSS/3G/4G/WLAN support via 2x Mini PCIe slots and 2x USIM slots

4x isolated DI and 4x isolated DO

MVB/CAN bus support through Mini PCIe add-on module

Wide range DC input: 24VDC, 36VDC, 72VDC and 110VDC

EN50155-compliant, rugged, fanless design for harsh operating environments

Fanless Rugged IPC

360mm x 225.1mm x 105.4mm

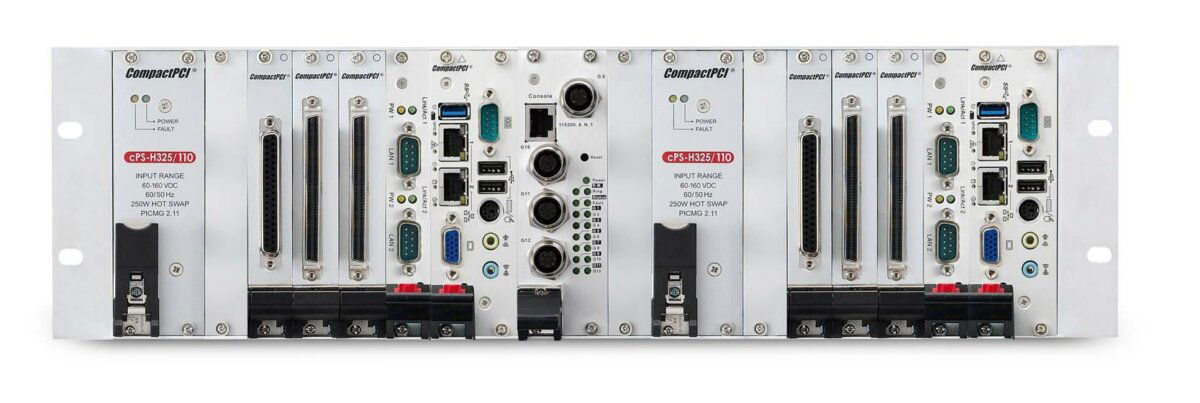

Automatic Train operation System

Dual 3U Sub System CompactPCI Rail Certified System with -6slot Backplane and Redundant Power Modules

Dual Redundant

cPCI-3620D, 3U CompactPCI Quad-Core Intel® Atom™ Processor Blade

cPCI-3E10, 2/4-port Gigibit Ethernet card

cPCI-7432, 32-CH isolated DI and DO module

cPCI-3544, 4-port RS-422/485 isolated serial communication card

cPS-H325/WDC, 8HP wide input range power module

cPCIS-ET1100, 3U 84HP CompactPCI fanless chassis

19” 3U rackmount enclosure

Onboard Rugged Storage System

CompactPCI Rail Certified 3U Enclosure with Backplane and Wide Temperature Range

Dual Redundant

cPCI-A3515

,

CompactPCI Serial Intel®Core™ Processor Blade with ECCORing CPGS-9160-M12-A, EN 50155 16- port managed Gigabit Ethernet switch

cPCI-A3W20, WiFi/3G/LTE module carrier (coming soon)

cPCI-A3H10, SATA HDD/SSD carrier

19” 3U rackmount enclosure

Wayside Non-safety critical System

CompactPCI Rail Certified 3U Enclosure with Backplane and Wide Temperature Range

Dual Redundant

cPCI-3620, CompactPCI Quad-Core Intel® Atom™ Processor Blade

cPCI-7841, dual independent ports CAN card

cPCI-7433, 64-CH isolated DI and DO module

cPCI-7432, 32-CH isolated DI and DO module

cPCI-3544, 4-port RS-422/485 isolated serial communication card

19” 3U rackmount enclosure

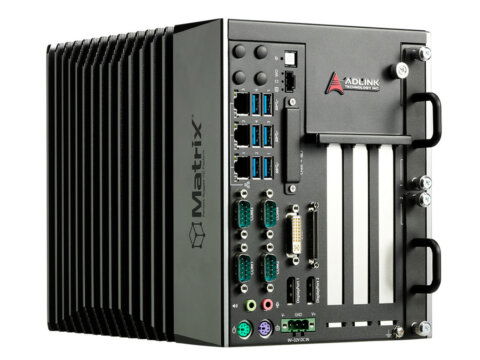

Automatic Fare Collection System

Rail Certified Fanless Embedded Computer

External

MXE-5500 Series: EN 50155 compliant Intel® Core™ i7/i5/i3 fanless embedded computer

MXC-6400 Series, 6th Generation Intel® Core™ i7/i5/i3 processor computer with PCI/PCIe slots

MXC-2300 Series, Intel® Atom™ processor E3845 fanless expandablecomputer with PCI/PCIe Slots

MXE-1400 Series, Intel® Atom™ processor E3845 fanless Embedded computer

Rugged Fanless System

Driver Machine Interface

Rail Certified Panel PC

DMI-1210

DMI-1040

Internal

Intel Atom® x5-E3930 processor, up to 1.8GHz

10.4”/12.1” colour display: 4:3, 1024 x 768 pixels, high brightness 1000cd/m2, 5-wire resistive touch, auto dimming

2GB DDR3L memory (up to 8GB optional)

32GB eMMC storage

Power Input Voltage: 24VDC, 36VDC, 72VDC and 110VDC (EN50155 compliant)

-25°C to +70°C wide operating temperature range (EN50155 class OT3)

IP65 front and IP20 rear ingress ratings

Rugged Panel PC
