Zuivere signaalgeneratie voor RF-testen
Met de compacte en draagbare RF analoge signaalgeneratoren AP500xA van Keysight kunt u uw draadloze apparaten karakteriseren en volledig testen. Met deze serie kunt u apparaten tot 26 GHz snel en betrouwbaar testen, met een uitzonderlijk uitgangsvermogen, lage faseruis en hoge schakelsnelheid.
Raadpleeg de catalogus in het downloadgedeelte hieronder voor meer informatie over het assortiment.
Kenmerken van het assortiment
Een algemeen overzicht van wat dit assortiment te bieden heeft
Analogue Signal Generators:
- 9kHz to 26GHz
- Characterise devices thoroughly with up to +23 dBm output power and -130 dBc / Hz phase noise.
- Accelerate testing rapid switching speeds down to 20 μs.
- Generate a stabilised low-phase noise signal with micro-Hz resolution with an oven-controlled crystal oscillator (OCXO).
- Enhance testing with sweep, trigger functions, and user-programmable external reference frequency.
- Upgrade your signal generator to a higher frequency or add more capabilities via a license key.
- Operate easily with optimised user interface, including LCD touch screen and remote desktop software.
Vector Signal Generators:
- 100 kHz to 4, 6, 12, 20, 40 GHz
- Ultra-fast switching: <100 ns within mod BW, as fast as 2.6 µs (4 GHz), 3.1 µs (6 to 20 GHz), 5.9 µs (40 GHz)
- Low phase noise: -142 dBc/Hz at 1 GHz, 10 kHz offset; -113 dBc/Hz at 10 GHz, 10 kHz offset
- Harmonics: < -30 dBc; Non-harmonics: -50 dBc at 10 GHz
- Standard Digital vector modulator: IQ BW 400 MHz (16bit)
- Internal digital baseband generator: Sample Rate up to 500 MHz, 512 MSa IQ memory
- FCP for IQ-data streaming, 125/250 Msa/s
- Ext. analogue I/Q inputs: 50 MHz
- Phase coherent, phase coherent switching
- Multi-device waveform/trigger synchronisation: 6 GHz clock IN/OUT
Downloads
voor Compact Signal Generators
Wat zit er in dit assortiment?
Alle varianten in het assortiment en een vergelijking van wat ze bieden
| Model | Freq. range | Freq.switching | Narrow pulse width | SSB phase noise (at 1GHz, 20kHz offset) | Max output power |
|---|---|---|---|---|---|

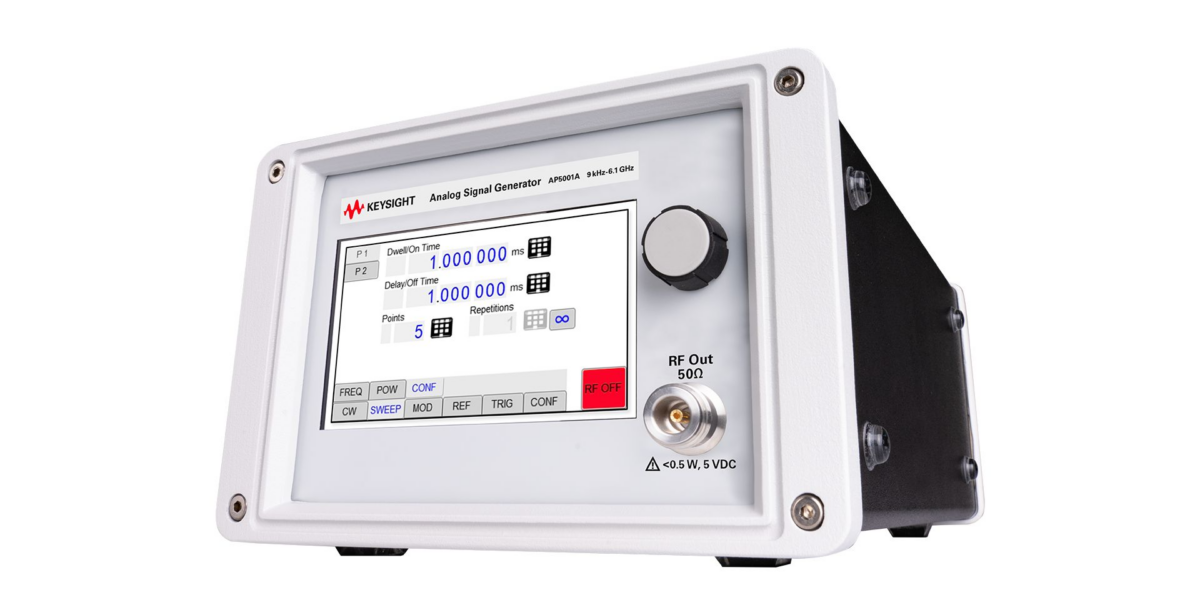

AP5001A | 9kHz – 2.4 or 6.1GHz | 200 μs | 30 ns | -130dBc/Hz | +17dBm |

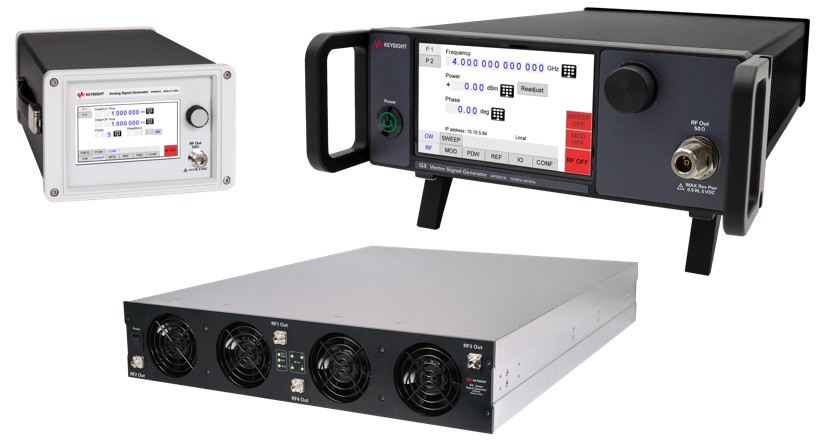

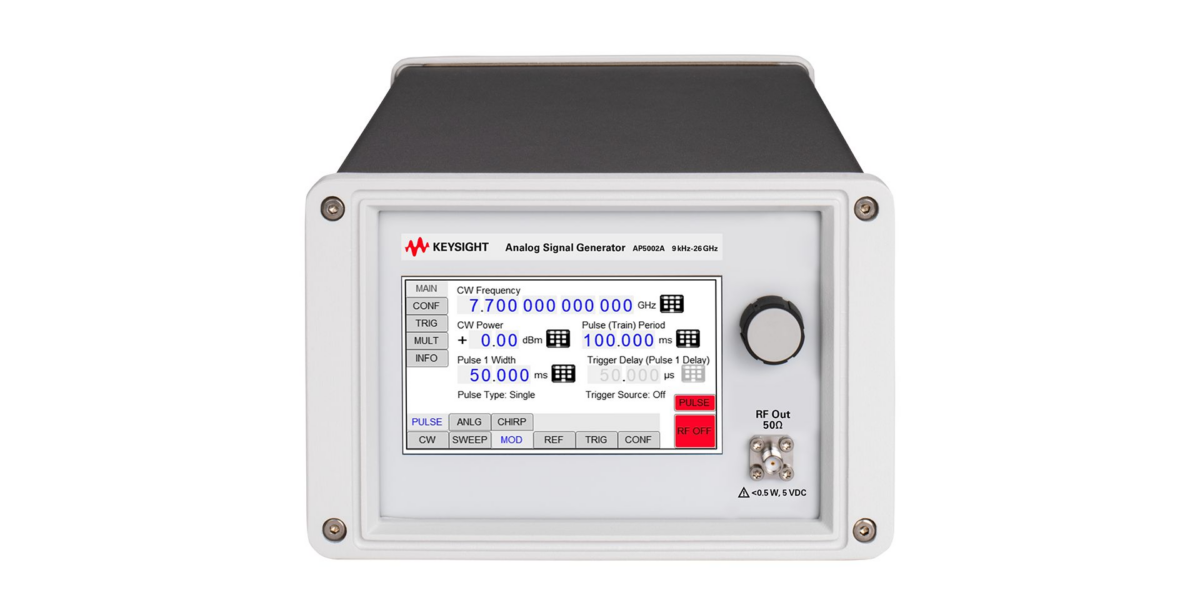

AP5002A | 9kHz – 12, 20 or 26GHz (30GHz settable) | 300 μs | 100 ns | -130dBc/Hz | +15 dBm |
| Model | Freq. range | Freq.switching | Nr of channels | phase noise | Max output power |
|---|---|---|---|---|---|

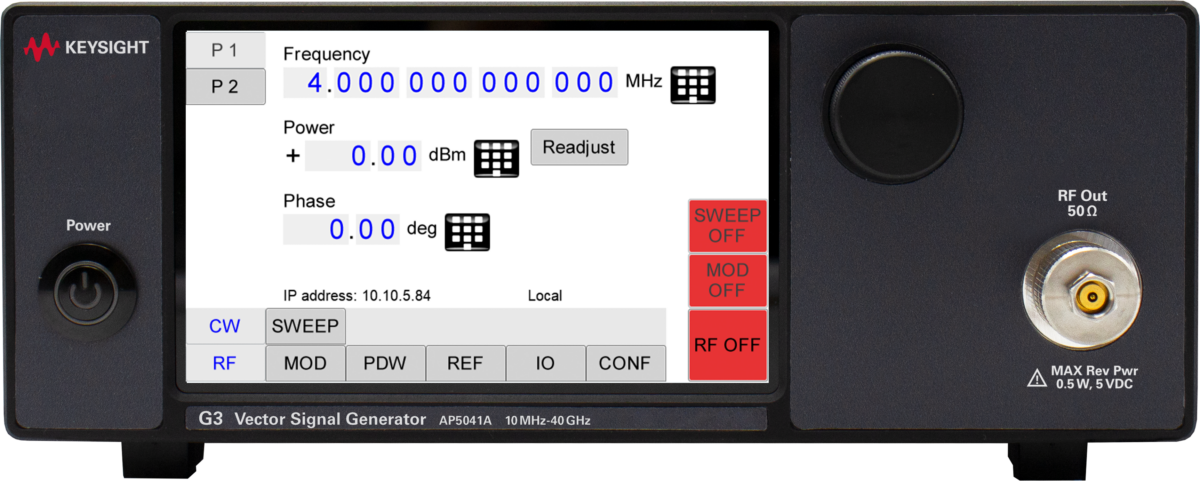

AP5041A | 100kHz-40GHz | 500 μs standard As low as 2.6 μs (option UNZ) | 1 | -142 / -113 dBc/Hz (LN1, LN2) | +22 dBm |
AP5042A | 100kHz-40GHz | 500 μs standard As low as 2.6 μs (option UNZ) | 1, 2, 3 or 4 | -142 / -113 dBc/Hz (LN1, LN2) | +22 dBm |
