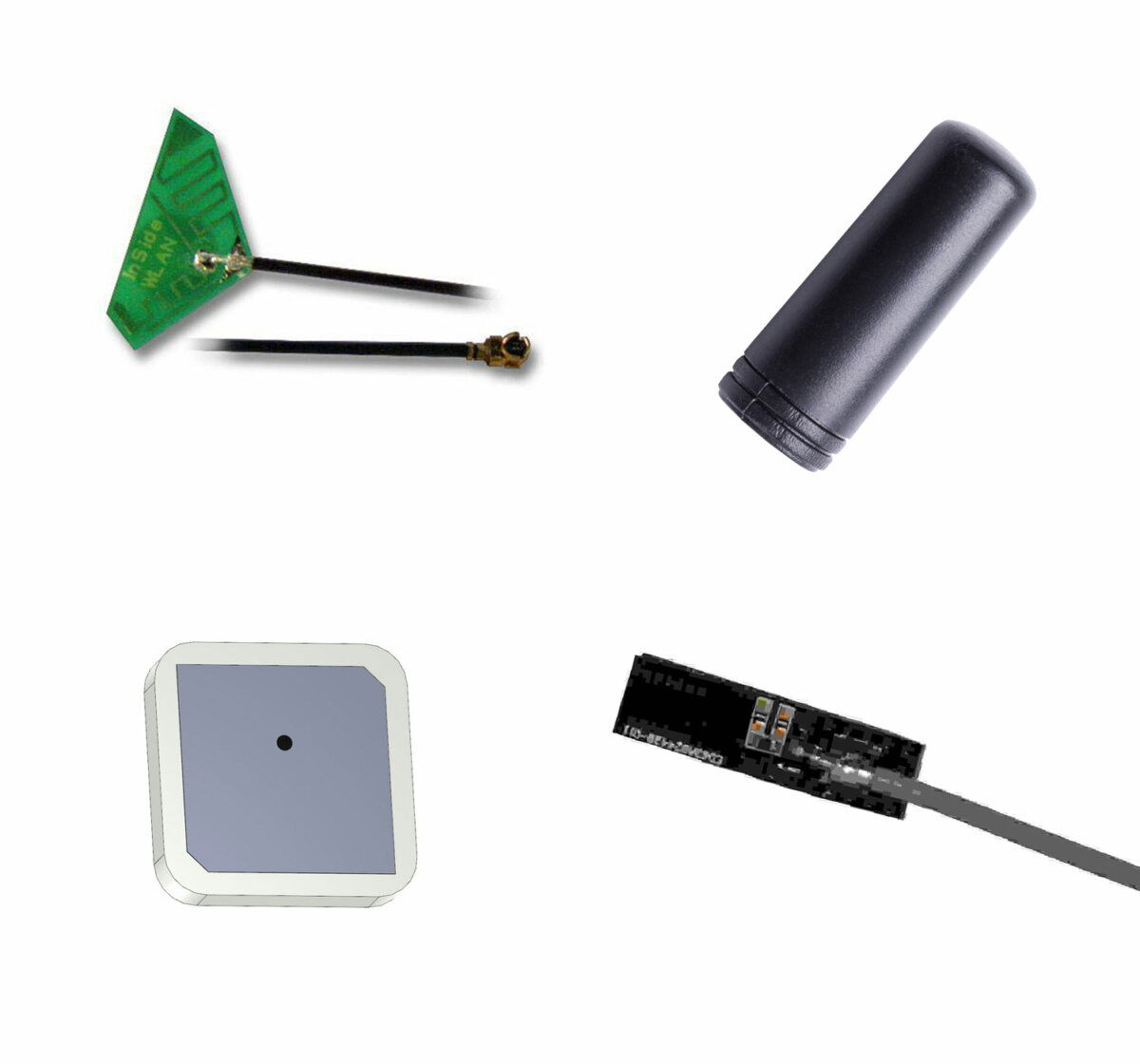

Abracon Wi-Fi- en Bluetooth-antennes zijn verkrijgbaar in verschillende maten en types, zoals chip, flexibele PCB, whip, blade en dome, zodat Abracon altijd de ideale antenne voor uw ontwerp heeft. Antennekabels en connectoren kunnen worden aangepast aan de toepassingseisen. De aanpassingsmogelijkheden bieden ingenieurs meer ontwerpflexibiliteit om apparaten sneller te ontwerpen, bouwen en lanceren, terwijl ze betere prestaties en betrouwbaarheid bieden.

Wi-Fi/ BT Antennas
IntroKenmerkenSpecificatiesContact

Kenmerken van het assortiment

Een overzicht van wat dit assortiment te bieden heeft

  • Compacte antennes met een laag profiel
  • Wi-Fi 6-antennes werken op alle drie de Wi-Fi-banden voor volledige dekking
  • Hoge piekversterking en efficiëntie
  • Actieve oplossingen: externe, chip- en flexibele PCB-antennes
  • Collectie met IP67-gecertificeerde en MIMO-opties
  • Inclusief compacte, low-profile en high-gain opties
  • Aanpasbare connectoren, kabellengtes en bevestigingen

Wat zit er in dit assortiment?

Alle varianten in het assortiment en een vergelijking van wat ze bieden

PartDescriptionTypeApplicationsLengthWidthHeight

ABAR1504-S2450

2.4GHZ PCB ANT IPEX(F)

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/Zigbee, ISM

15mm

4mm

0.8mm

ACAG0201-2450-T

2.4GHZ WIFI/ BT/ZIGBEE, ISM CHIP ANT SMD

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/Zigbee, ISM

2mm

1.25mm

0.6mm

ACAG0301-15752450-T

COMBO WIFI, GPS, ISM CHIP ANT SMD

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/Zigbee, ISM

3.2mm

1.6mm

1.2mm

ACAG0301-2450-T

2.4GHZ WIFI/ BT/ZIGBEE, ISM CHIP ANT SMD

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/Zigbee, ISM

3.2mm

1.6mm

1.2mm

ACAG0301-24505500-T

2.4/5GHZ 2xWIFI CHIP ANT SMD

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/Zigbee, ISM

3.2mm

1.6mm

1.2mm

ACAG0301-5500-T

5.5GHZ WIFI, ISM CHIP ANT SMD

Internal/Embedded

Wi-Fi/BT, Wi-Fi, ISM

3.2mm

1.6mm

1.2mm

ACAG0801-2450-T

2.4GHZ WIFI/ BT/ZIGBEE, ISM CHIP ANT SMD

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

8mm

1mm

1mm

ACAR0301-SW2

2.4/5.5GHZ WIFI/BT/ZIGBEE CHIP ANT SMD

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee

3.05mm

1.6mm

0.55mm

ACAR3005-C2WB

868/2400MHZ LPWA, WIFI/BT/ZIGBEE, ISM CHIP ANT SMD

Internal/Embedded

LPWA, LoRA/SigFox, NB-IoT/CAT-M, Wi-Fi/BT, Wi-Fi, BT/BLE/Zigbee, ISM

30mm

5mm

5mm

ACR1004A

2.4/5/6GHZ WI-FI/BT/ZIGBEE CHIP ANT SMD

Internal/Embedded

Wi-Fi/BT, Wi-Fi, ISM

10mm

4mm

1.5mm

AEACAC025009-S2400

2.4GHZ WIFI/BT/ZIGBEE, ISM WHIP ANT STR SMA(M)

External

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

25.9mm

9.5mm

N/A

AEACAC049009-S2400

2.4GHZ WIFI/BT WHIP STR ANT CABLE/IPEX(F)

External

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

49.3mm

9.2mm

N/A

AEACAQ190012-S2400

2.4GHZ WIFI/BT/ZIGBEE, ISM WHIP STR IPEX(F)

External

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

190mm

12.9mm

N/A

AEACBA059015-C3GSW

COMBO 4G/LTE, GPS, WIFI, NBIOT/CATM PUCK 3XSMA

External

Cellular, 4G/LTE, 2G/3G/GSM, LPWA, NB-IoT/CAT-M, GNSS, GPS, Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee

52mm

59mm

15mm

AEACBD059015-C3GSW

COMBO 4G/LTE, GPS, WIFI, NBIOT/CATM PUCK 3XSMA

External

GNSS, GPS, Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, Cellular, 4G/LTE, 2G/3G/GSM, LPWA, NB-IoT/CAT-M, ISM

52mm

59mm

15mm

AEACBK046014-C2WG

COMBO GPS, WIFI PUCK ANT SCREW 2XSMA(M)

External

GNSS, GPS, Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

46.6mm

14.5mm

N/A

AEACBK050048-MW2

2.4/5GHZ 2xWIFI DOME ANT 2xSMA(M)

External

Wi-Fi/BT, Wi-Fi, Wi-Fi MIMO, BT/BLE/Zigbee, ISM

48mm

50mm

N/A

AEACBK050048-SW2

2.4/5GHZ DUAL WIFI DOME ANT SCW SMA(M)

External

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

48mm

50mm

N/A

AEACBK110053-MLWG

COMBO GNSS, 2xLTE, 2xWIFI DOME SCW 5xSMA(M)

External

GNSS, GPS, GPS/GLONASS, Cellular, 4G/LTE, 4G/LTE MIMO, 2G/3G/GSM, LPWA, NB-IoT/CAT-M, Wi-Fi/BT, Wi-Fi, Wi-Fi MIMO, BT/BLE/Zigbee, ISM

110mm

53mm

N/A

AEACBK189085-MLWFGL5

COMBO 2x4G/LTE, WIFI/BT/ZIGBEE, GPS, AM/FM

External

Cellular, 4G/LTE, 4G/LTE MIMO, 2G/3G/GSM, LPWA, NB-IoT/CAT-M, Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM, GNSS, GPS, GPS L1/L2/L5/L6

189mm

182mm

85mm

AECR1808A12

5-IN-1 COMBO GNSS, 2x5G, 2xWIFI DOME SCW 5xSMA(M)

External

GNSS, GPS, GPS/GLONASS, GPS/GLONASS/BeiDou, GPS/GLONASS/BeiDou/Galileo/QZSS, Wi-Fi/BT, Wi-Fi, Wi-Fi MIMO, BT/BLE/ZigBee, Cellular, 5G, 5G MIMO, 4G/LTE, 4G/LTE MIMO, 2G/3G/GSM, LPWA, NB-IoT/CAT-M, ISM

189mm

182mm

85mm

AECR1808A20

7-IN-1 GNSS, 4x5G, 2xWIFI DOME ANT SCW SMA(M)

External

GNSS, GPS, GPS/GLONASS, GPS/GLONASS/BeiDou, GPS/GLONASS/BeiDou/Galileo/QZSS, Wi-Fi/BT, Wi-Fi, Wi-Fi MIMO, BT/BLE/ZigBee, Cellular, 5G, 5G MIMO, 4G/LTE, 4G/LTE MIMO, 2G/3G/GSM, LPWA, NB-IoT/CAT-M, ISM

189mm

182mm

85mm

AECS1806C03Z

AUTO 3-IN-1 GNSS, 4G/LTE, WIFI SHARKFIN 3xSMA(M)

External

GNSS, GPS, GPS/GLONASS, GPS/GLONASS/BeiDou, GPS/GLONASS/BeiDou/Galileo/QZSS, Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, Cellular, 4G/LTE, 2G/3G/GSM, LPWA, NB-IoT/CAT-M, ISM

181.7mm

68.9mm

69.1mm

AECS1806D07Z

AUTO 4-IN-1 GNSS, 2x4G/LTE, WIFI SHARKFIN 4xSMA(M)

External

GNSS, GPS, GPS/GLONASS, GPS/GLONASS/BeiDou, GPS/GLONASS/BeiDou/Galileo/QZSS, Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, Cellular, 4G/LTE, 4G/LTE MIMO, 2G/3G/GSM, LPWA, NB-IoT/CAT-M, ISM

181.7mm

68.9mm

69.1mm

AECW0801C03

3-IN-1 COMBO GNSS, 4G/LTE, WIFI PUCK SCW 3xSMA(M)

External

GNSS, GPS, GPS/GLONASS, GPS/GLONASS/BeiDou, GPS/GLONASS/BeiDou/Galileo/QZSS, Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, Cellular, 4G/LTE, 2G/3G/GSM, LPWA, NB-IoT/CAT-M, ISM

81.3mm

N/A

16.3mm

AECW0801C09

4-IN-1 COMBO GNSS, 2xLTE, WIFI PUCK SCW 4xSMA(M)

External

GNSS, GPS, GPS/GLONASS, GPS/GLONASS/BeiDou, GPS/GLONASS/BeiDou/Galileo/QZSS, Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, Cellular, 4G/LTE, 4G/LTE MIMO, 2G/3G/GSM, LPWA, NB-IoT/CAT-M, ISM

81.3mm

N/A

16.3mm

AFAC120050-U6G

UWB, 5G/4G/LTE, WIFI, GNSS, ISM FPC ADH IPEX(F)

Internal/Embedded

UWB, Cellular, 5G, 4G/LTE, 2G/3G/GSM, LPWA, NB-IoT/CAT-M, LoRa/SigFox, GNSS, GPS, GPS/GLONASS, GPS/GLONASS/BeiDou, GPS/GLONASS/BeiDou/Galileo/QZSS, Wi-Fi/BT, Wi-Fi, BT/BLE/Zigbee, ISM

120mm

50mm

0.2mm

AFAG2220-SW2

2.4/5GHZ DUAL WIFI FPC ANT IPEX(F)

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

22mm

20mm

N/A

AFC8513U4G

5G/4G/LTE/NBIOT/CATM, GNSS FLEX ANT ADH IPEX(F)

Internal

GNSS, GPS, GPS/GLONASS, GPS/GLONASS/BeiDou, GPS/GLONASS/BeiDou/Galileo/QZSS, Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, Cellular, 5G, 4G/LTE, 2G/3G/GSM, LPWA, NB-IoT/CAT-M, ISM

85mm

13.8mm

0.2mm

AFG4507W2

2.4/5GHZ WI-FI/BT/BLE FLEX ANT IPEX-1(F)

Internal/Embedded

Wi-Fi/BT, ISM

45mm

7.8mm

0.2mm

AMCA31-2R450G-S1F-T3

2.4GHZ WIFI/ BT/ZIGBEE, ISM CHIP ANT SMD

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

3.2mm

1.6mm

1.2mm

AMCA52-2R540G-S1F-T

2.54GHZ WIMAX, WIFI/ BT/ZIGBEE, ISM CHIP ANT SMD

Internal/Embedded

Cellular, 4G/LTE, 2G/3G/GSM, Wi-Fi/BT, Wi-Fi, BT/BLE/Zigbee, ISM

5.2mm

2.1mm

1mm

AMCA72-2R470G-S1F-T

2.47GHZ WIFI/ BT/ZIGBEE, ISM CHIP ANT SMD

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

7mm

2mm

1mm

AMCA72-2R860G-02F-T

2.86GHZ WIMAX CHIP ANT SMD

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

7mm

2mm

1mm

APAGM2525-S2450

2.4GHZ WIFI/ BT/ZIGBEE, ISM PATCH ADH PIN

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

25mm

25mm

4mm

APAKN1304-S2450-T

2.4GHZ WIFI/BT/ZIGBEE, ISM PATCH ANT SMD

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

13mm

13mm

4mm

APAKN1304-S5517-T

2.4GHZ WIFI/BT/ZIGBEE, ISM PATCH ANT SMD

Internal/Embedded

Wi-Fi/BT, Wi-Fi, ISM

13mm

13mm

4mm

APAKN2504-S2448-T

2.4GHZ WIFI/BT/ZIGBEE, ISM PATCH ANT SMD

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

25mm

25mm

4mm

APAMBJ-135

2.4/5GHZ DUAL WIFI WHIP STR ANT SMA (M)

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

54.4mm

10mm

N/A

APAMBJ-145

2.4/5GHZ DUAL WIFI DOME ANT SCW SMA(M)

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

77.3mm

36.5mm

N/A

APAMPSLJ-142

GPS/GLONASS, GSM, WIFI/BT DOME 2xSMA(M), 1xFME(F)

External

Cellular, 2G/3G/GSM, Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

92mm

52mm

157mm

APAMS-120

2.4GHZ/5.8GHZ DUAL WIFI WHIP STR ANT SMA_RP

External

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

77mm

10mm

N/A

APAMS-121

2.4/5GHZ DUAL WIFI WHIP TILT ANT SMA-RP(M)

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

86mm

10mm

N/A

APAMSJ-137

5GHZ WIFI WHIP STR ANT SMA (M)

Internal/Embedded

Wi-Fi/BT, Wi-Fi, ISM

44mm

9.6mm

N/A

APAMSTJ-138

5GHZ WIFI WHIP STR ANT SMA (M)

External

Cellular, 2G/3G/GSM, Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

126.5mm

22mm

6.7mm

APARC2505-S2450

2.4GHZ WIFI/ BT/ZIGBEE, ISM PATCH ANT SMD

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

25.1mm

25.1mm

5.5mm

APARN1204-S2450

2.4GHZ WIFI/BT/ZIGBEE, ISM PATCH ANT SMD

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

12mm

12mm

4mm

PRO-EB-592

2.4GHZ WI-FI/BT/BLE NICHE ANT

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

50mm

20mm

0.8mm

PRO-EB-594

2.4/5GHZ WI-FI/BT/BLE NICHE ANT

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

50mm

20mm

0.8mm

PRO-EX-285

2.4/5GHZ WI-FI/BT/BLE WHIP ANT SMA(M)

External

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

N/A

10mm

106mm

PRO-EX-286

2.4/5GHZ WI-FI/BT/BLE WHIP ANT RP-SMA(M)

External

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

N/A

10mm

106mm

PRO-EX-296

2.4GHz WI-FI/BT/BLE WHIP ANT IPEX(F)

External

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

N/A

12mm

28.5mm

PRO-EX-327

2.4GHZ WI-FI/BT/BLE WHIP ANT SMA(M)

External

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

N/A

10mm

79mm

PRO-EX-332

2.4GHZ WI-FI/BT/BLE WHIP ANT SMA(M)

External

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

N/A

10mm

82.1mm

PRO-EX-333

2.4GHZ WI-FI/BT/BLE WHIP ANT SMA(M

External

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

N/A

10mm

82.1mm

PRO-EX-347

2.4GHz WI-FI/BT/BLE WHIP ANT SMA(M)

External

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

N/A

12mm

28mm

PRO-EX-348

2.4GHz WI-FI/BT/BLE WHIP ANT RP-SMA(M)

External

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

N/A

12mm

28mm

PRO-IS-237

2.4GHZ WI-FI/BT/BLE BOARD ANT IPEX (F)

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

22mm

11.27mm

0.8mm

PRO-IS-299

2.4/5.5GHZ WI-FI/BT/BLE BOARD ANT IPEX (F)

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

22mm

11.27mm

0.8mm

PRO-IS-432

2.4/5.5GHZ WI-FI/BT/BLE BOARD ANT IPEX (F)

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

22mm

20mm

0.8mm

PRO-IS-578

2.4/5.5GHZ WI-FI/BT/BLE BOARD ANT IPEX (F)

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

22mm

11.27mm

0.8mm

PRO-IS-579

2.4/5.5GHZ WI-FI/BT/BLE BOARD ANT IPEX (F)

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

22mm

20mm

0.8mm

PRO-IS-587

2.4GHZ WI-FI/BT/BLE BOARD ANT IPEX (F)

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

22mm

11.27mm

0.8mm

PRO-OB-440

2.4GHZ WI-FI/BT/BLE STAMPED METAL ANT

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

13.75mm

5.23mm

3.53mm

PRO-OB-536

2.4/5G HZ WI-FI/BT/BLE STAMPED METAL ANT

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

14.2mm

6.6mm

2.5mm

PRO-OB-607

2.4GHZ WI-FI/BT/BLE STAMPED METAL ANT

Internal/Embedded

Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM

9.9mm

4.3mm

2mm

Contact met ons opnemen

Neem voor meer informatie en beschikbaarheid direct contact met ons op. Of vul ons contactformulier in, dan neemt een medewerker van het verkoopteam contact met u op.

Acal BFi UK

JavaScript aktivieren+44 1189 788 878
Verplicht veld: vul uw telefoonnummer in.

Door dit aanvraagformulier in te dienen, bevestigt u dat u ons privacybeleid hebt gelezen en hiermee akkoord gaat.

Er is een fout opgetreden tijdens het verzenden van het formulier. Probeer het opnieuw.

Gerelateerde productassortimenten

Cellular Antennas
Abracon
Cellular Antennas

De mobiele antennes zijn verkrijgbaar in verschillende maten en types, zoals chip, flexibele PCB, whip, blade en dome, zodat Abracon altijd de ideale antenne voor uw ontwerp heeft.

Compacte SMD OCXO & Stratum3 TCXO
Taitien
Compacte SMD OCXO & Stratum3 TCXO

Wij bieden enkele van de kleinste ‘high performance’ OCXO-oplossingen ter wereld.

Diplexer (DPX)
Johanson Technology
Diplexer (DPX)

Diplexers verdelen hoogfrequente signalen van een ingang naar 2 uitgangen met verschillende frequentiebereiken.

Keramische RF-chipantennes
Johanson Technology
Keramische RF-chipantennes

LTCC-chipantennes voor frequentiebereiken van 433 MHz tot 10 GHz.

Multiplexer Filters
Sangshin
Multiplexer Filters

RF Multiplex-filters van Sangshin

QT2021 Series MCXO Crystal Oscillators
Q-Tech Corporation
QT2021 Series MCXO Crystal Oscillators

De Q-Tech QT2021 MCXO-serie, waar precisie en innovatie samenkomen in kristaloscillatoren. Deze microcomputergecompenseerde kristaloscillatoren (MCXO’s) vertegenwoordigen het summum van timingtechnologie en maken gebruik van zeer stabiele SC-geslepen kristallen in combinatie met geavanceerde microprocessorgestuurde compensatie.

Triplexers (TPX)
Johanson Technology
Triplexers (TPX)

Johanson passieve RF-triplexers voor ontwikkelingen met een kleine footprint.

Vertragingsfilter
Sangshin
Vertragingsfilter

De Delay Filter van Sangshin zijn gebaseerd op een holteontwerp.
