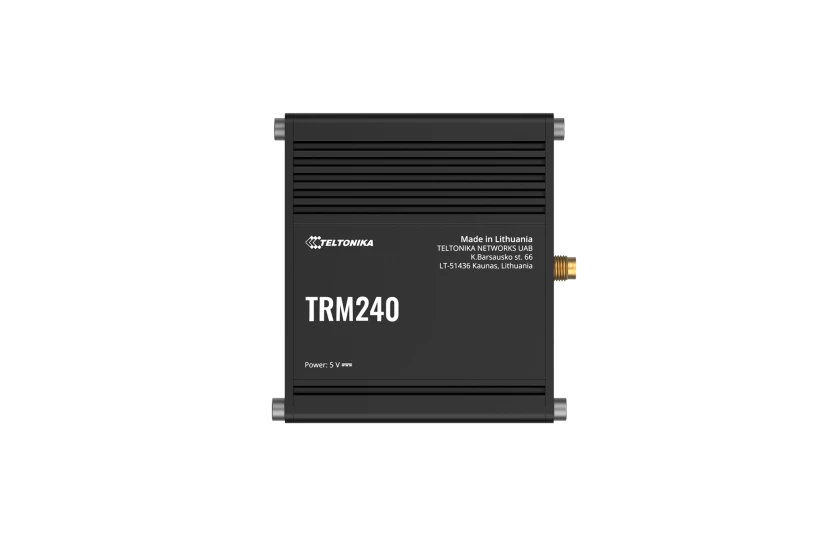

TRM240 4G Cat-1 Modem
- Technologie
- Mobiele modems en gateways
- Partner
- Teltonika Networks
The Teltonika TRM240 is a robust industrial-grade USB modem designed to provide reliable LTE Cat 1 connectivity for various industrial applications. Encased in a rugged housing, it is built to withstand harsh environmental conditions commonly found in industrial settings. Equipped with an external antenna, the TRM240 ensures improved signal strength and coverage, even in challenging or remote locations where cellular reception might be weak.
This modem is an excellent solution for upgrading existing industrial equipment and machinery by adding cost-efficient, high-quality LTE connectivity without the need for extensive hardware changes. Its USB interface allows for easy plug-and-play integration, enabling quick deployment and seamless connection to IoT gateways, monitoring systems, or other industrial devices.
The TRM240 supports low-power consumption, making it suitable for long-term installations that require stable and continuous connectivity. Whether used for remote monitoring, asset tracking, or industrial automation, the TRM240 delivers reliable mobile broadband performance, helping businesses maintain real-time data access and operational efficiency.

Range features
An overview of what’s in the range
- Connectivity – Supports 4G/LTE (Cat 1), 3G, and 2G networks
- Compact & durable – Small form factor for easy installation in industrial environments
- USB Interface – Provides internet access via microUSB connection
- External Antenna – Enhances signal strength and allows flexible deployment
What’s in this range?
All the variants in the range and a comparison of what they offer
Category | Specification |
---|---|
Mobile module | 4G LTE Cat 1 up to 10 DL/5 UL Mbps; 3G up to 384 DL/384 UL kbps; 2G up to 296 DL/236.8 UL kbps |
3GPP Release | Release 12 |
Connector | microUSB |
Input voltage range | 5V – powered via microUSB |
Power consumption | 3.2 W Max |
Status LEDs | 1 x Power LED, 1 x Network LED, 1 x Mobile LED |
SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
Power | 1x microUSB |
Antennas | 1 x SMA for LTE |
Casing material | Aluminium housing |
Dimensions (W x H x D) | 74.5 x 25 x 64.5 mm |
Weight | 131 g |
Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
Operating temperature | -40 °C to 75 °C |
