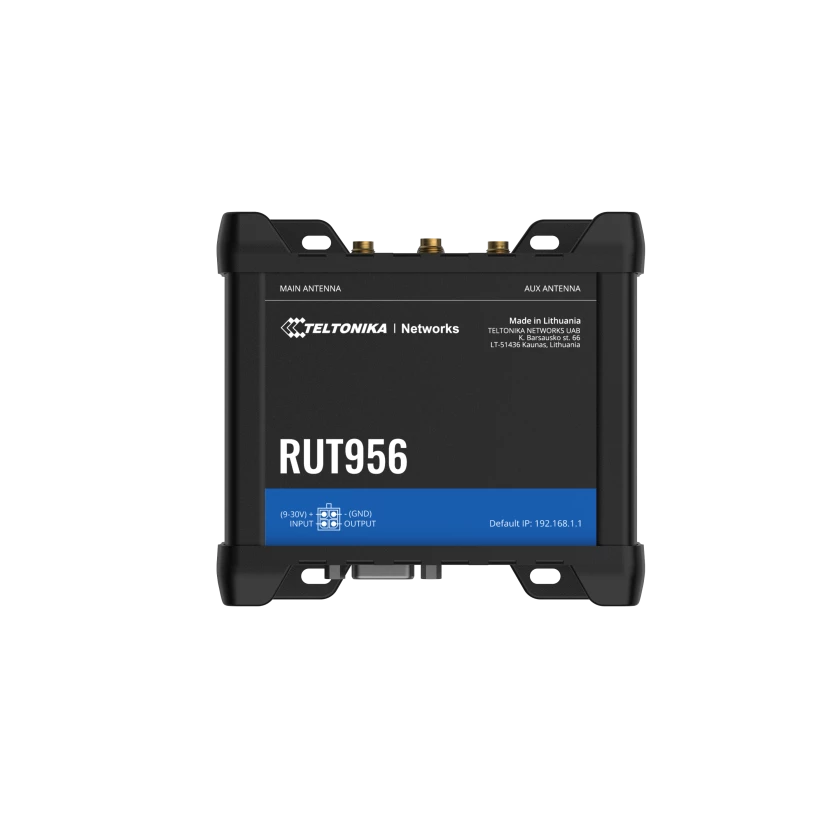

RUT956 4G CAT-4 Router
- Technologie
- Mobiele modems en gateways
- Partner
- Teltonika Networks
De RUT956 is een robuuste industriële router die naadloze connectiviteit biedt via mobiele, Wi-Fi- en bekabelde interfaces, met automatische WAN-failover om ononderbroken internettoegang te garanderen. Het beschikt over GNSS-mogelijkheden voor nauwkeurige lokalisatie en bevat seriële communicatiepoorten voor eenvoudige integratie met een breed scala aan industriële apparaten.
Met digitale I/O’s en het geavanceerde RutOS-besturingssysteem ondersteunt de RUT956 automatisering, afstandsbediening van apparatuur en real-time gebeurteniswaarschuwingen.

Kenmerken van de productreeks
Een overzicht van wat in de productreeks zit
-
Connectiviteit – 4G LTE (Cat 4), 3G, 2G
-
Dual SIM – Auto-failover, backup-WAN en flexibele schakeling
-
Meerdere interfaces – Ethernet, RS232/RS485 en digitale I/O’s
-
GNSS – Locatie traceren en tijdsynchronisatie via wereldwijde satellietsysteem
Wat zit er in deze reeks?
Alle varianten in de reeks en een vergelijking van wat ze bieden
Category | Specification |
---|---|
Mobile module | 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps |
3GPP Release | Release 11 |
SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
Status | IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC |
SMS | SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
Block/Allow list | Operator block/allow list (by country or separate operators) |
Multiple PDN | Possibility to use different PDNs for multiple network access and services |
Band management | Band lock, Used band status display |
SIM PIN code management | SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN |
APN | Auto APN |
Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
