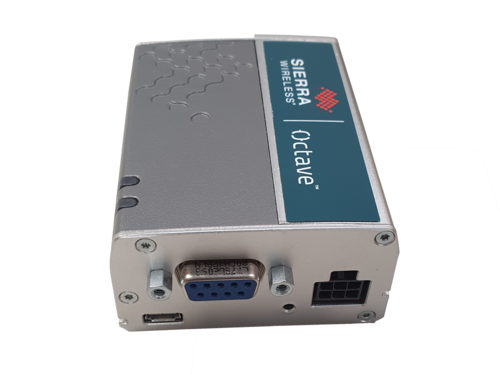

FX30S LTE Cat-M1/NB1 Gateway
- Technologie
- Mobiele modems en gateways
- Partner
- Semtech (formerly Sierra Wireless)
The FX30S LTE-M/NB1 is the industry’s most compact and rugged programmable 4G LPWA gateway, purpose-built to support critical IoT applications in demanding industrial environments. Designed with flexibility, reliability, and scalability in mind, the FX30S enables seamless integration into machines, equipment, and remote assets.
Equipped with LTE-M/NB1 cellular connectivity, the FX30S ensures low-power, wide-area coverage suitable for applications such as remote monitoring, smart metering, industrial automation, and asset tracking. Its secure Linux-based application framework, powered by Legato®, provides a robust platform for embedded development, offering developers a feature-rich environment to create, test, and deploy edge applications with ease.
The FX30S supports cloud integration, enabling real-time data transmission and centralized device management. Its programmable architecture allows for custom logic at the edge, reducing latency, conserving bandwidth, and enhancing system intelligence. Built to withstand harsh operating conditions, the FX30S offers industrial-grade durability in a compact, rugged form factor.
With support for firmware-over-the-air (FOTA) updates, remote management, and global deployment, the FX30S is an ideal solution for scalable, future-ready IoT systems.
Range features
An overview of what’s in the range
- Highly programmable – Secure Linux-based environment for efficient embedded IoT application development
- Compact & rugged – Designed for seamless integration into machines and built to withstand harsh industrial conditions
- Globally scalable – Supports LTE Cat-M/NB1 for worldwide low-power IoT deployments
- Extensible – Offers rich interfaces and hardware expansion options for easy system integration
- Fully managed – Supports FOTA and fleet-wide device management via a unified platform
What’s in this range?
All the variants in the range and a comparison of what they offer
| Category | Specification |
|---|---|
Air interface |
|
Frequency bands 4G LTE | B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B26, B28 |
3G UMTS/HSPA+ | B2, B4, B5 |
2G EDGE/GSM/GPRS | 850, 900, 1800, 1900 |
Regulatory | FCC/IC, CE&RoHs, REACH, RCM, Safety IEC60950-1, UL Listed, GCF, PTCRB |
Telecom & Carrier | AT&T, Verizon |
Power voltage | DC 4.75V to 32V |
Radio module | WP7702 |
Processor | ARM® Cortex™-A7 |
Core frequency | 1.3GHz |
RAM (reserved for app processor) | 128MB |
Flash (reserved for app processor) | 256MB (min 100,000 write cycles) |
