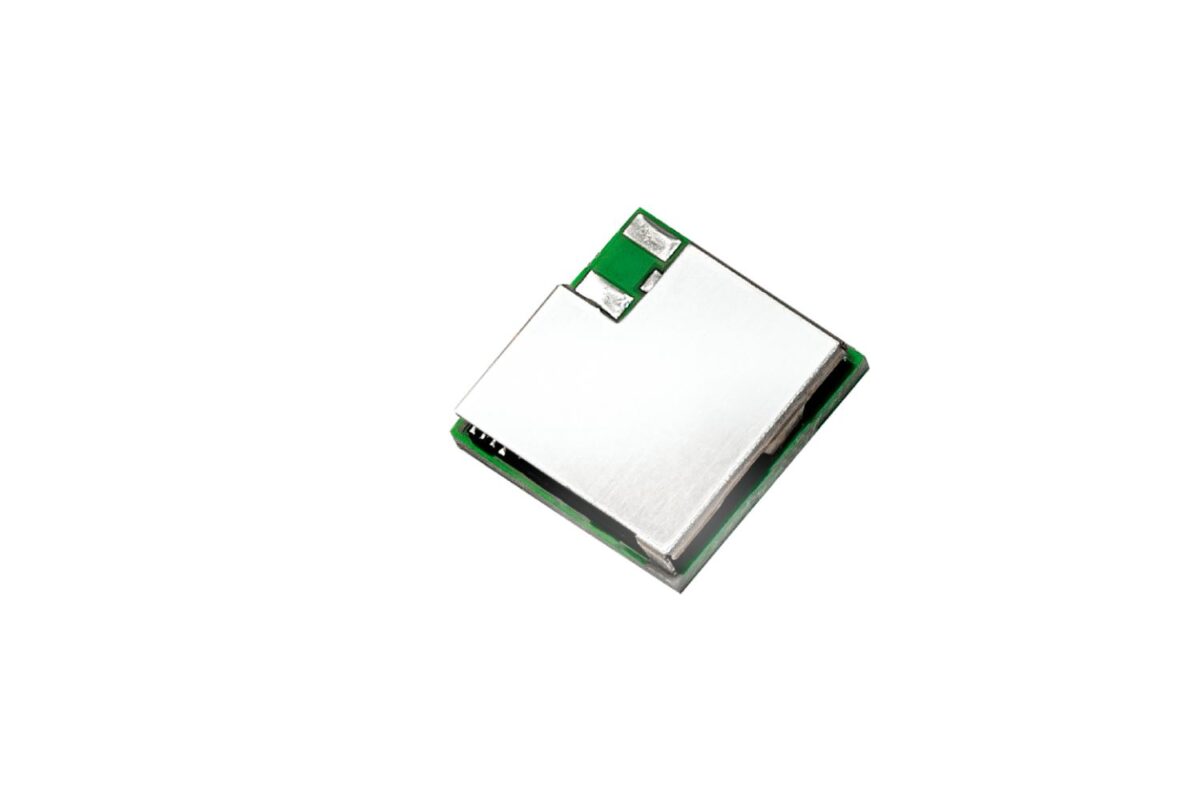

EMB-LR1276S LoRaWAN 868MHz LGA module
- Technologie
- LoRa modules
- Partner
- Embit
The EMB-LR1276S is a low-cost, ultra-compact wireless module (11.5 × 11.5 × 2 mm) designed to easily integrate LoRa®/LoRaWAN® long-range connectivity into existing products. It supports output power up to +18 dBm for US use or +14 dBm for EU, with high sensitivity down to –136 dBm and extremely low power consumption (≤1 μA in sleep mode).
The module features an embedded IEEE EUI-64 address and includes the Microchip ATECC608A crypto unit for secure communication. It comes preloaded with a LoRa®/LoRaWAN® stack for quick integration and supports AT-like commands via the EBI-LoRa protocol over UART. As an open platform, it also allows for custom firmware development.
The EMB-LR1276S is available in two versions: the EMB-LR1276S/PC with a pad connector, and the EMB-LR1276S/UL with a micro U.FL connector for external antennas. An evaluation kit (EMB-LR1276S-EVK) is recommended for users developing custom firmware.
Range features
An overview of what’s in the range
High output power
- Up to +18 dBm (~80 mW) for US regions
- Up to +14 dBm (~25 mW) for EU compliance
Exceptional receiver sensitivity
- Down to –136 dBm, enabling long-range communication
Ultra-low power consumption
- ≤1 μA in eXtreme Low Power (XLP) sleep mode
Integrated unique identifier
- Embedded IEEE EUI-64 address (module: EMB-LR1276S)
Secure communication
- On-board Crypto Unit (Microchip ATECC608A) for data protection
Flexible & open platform
- Ideal for custom development and integration
Compact form factor
- Only 11.5 x 11.5 x 2 mm, perfect for space-constrained applications
What’s in this range?
All the variants in the range and a comparison of what they offer
| Category | Specification |
|---|---|
Based on | Microchip SAMR34 SiP |
Program memory | 256 KB |
RAM memory | 32 KB |
Output power (MAX) | up to +14dBm |
Sensibility | -136 dBm |
AES software encryption | Available |
Form factor | 11.5 x 11.5 x 2 mm |
Consumption | (sleep) 1 µA / 3 µA (with a RTC clock running) |
Supply voltage | 3.3 V |
Part number | EMB-LR1276S |
