Large Area Laser Safety Protection

Technologie
Laser safety
Partner
Laservision

Voor onderhoud aan lasers, het indelen van ruimtes of experimenten, of het beveiligen van de ruimte rondom uw lasers, heeft Laservision een reeks oplossingen die voldoen aan de Europese normen. Zij bieden de volgende oplossingen:

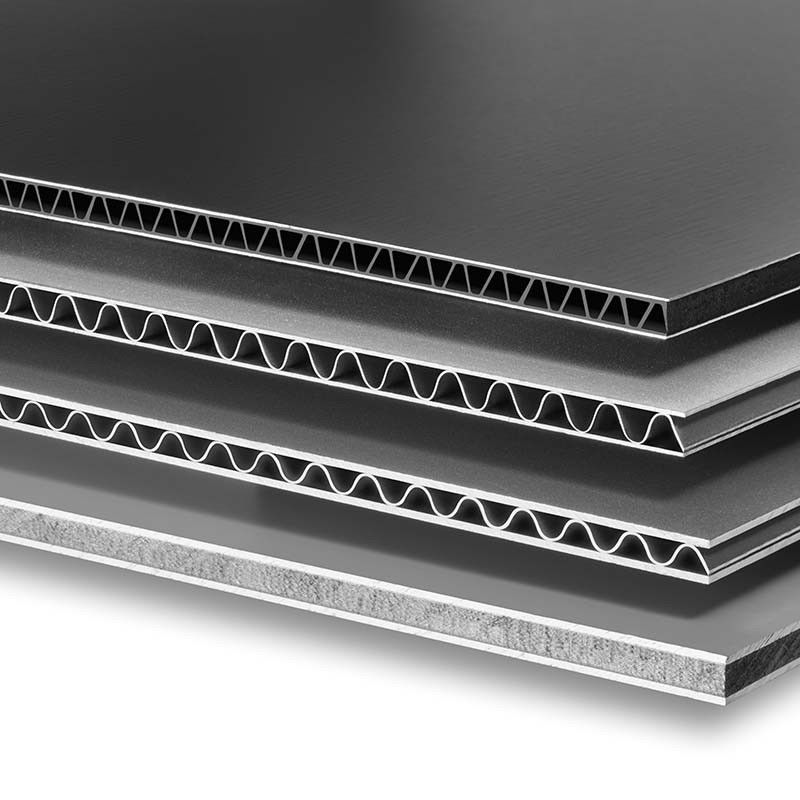

Rigid E25 "German Award Design 2021": modulair barrièresysteem met aluminium sandwichconstructie en gecoate aluminium afdekplaten.

Gordijnen Shelter NG of Light: flexibel, gecoat silicaatdoek voor montage op plafondrails of frames – oprolbaar (vrijstaand).

Tafelsysteem voor optische tafels: gebaseerd op het M7P06-paneel, met maximale flexibiliteit van de constructie met drie varianten.

Klantenspecifieke oplossingen zijn op aanvraag leverbaar.

Large Area Laser Safety Protection

Kenmerken van het assortiment

Een overzicht op hoog niveau van wat dit assortiment te bieden heeft

  • E25-barrières
  • Flexibele gordijnen NG
  • Flexibele gordijnen light
  • Oprolbare gordijnen
  • TTS-tafelsysteem voor optische tafels

Wat zit er in dit assortiment?

Alle varianten in het assortiment en een vergelijking van wat ze bieden

ModelCertificationsDimensionsSpecifications

E25 modular barrier system wall M7P06

EN 60825-4

Segment (W x H) 1257mm x 2100mm

Modular construction from 2 to 9 segments

Colour: black

Space-saving storage

Delivered ready to use

Lockable wheels

360° flex joint: safety in any position

Option for visibility: plastic windows

Standard size (W x H) 1219mm x 915mm with a maximum thickness of 6mm

Shelter NG BC1 high-power curtain

EN 60825-4tested with EN 12254

8 standard sizes:

Width: 900mm and 1800mm

Height: 2000mm, 2500mm, 3000mm, 3500mm

Panels connected with Velcro strips for endless dimensions

Frames and rail systems for ceilings

Eyelets on the top

Protection on both sides

Shelter light BC3 light-power curtain

EN 12254

8 standard sizes:

Width: 900mm and 1800mm

Height: 2000mm, 2500mm, 3000mm, 3500mm

Panels connected with Velcro strips for endless dimensions

Standard frames and rails systems

Eyelets on the top

Protection on one side

Roll-up BC3

EN 12254

Lightweight frame and carrying case

Standalone (W x H): 900mm x 2000mm

Roll-up connector (W x H): 450mm x 2000mm

Roll-up set: 3 roll-ups, and 2 connectors included

Protection on one side

Table-top-system

EN 60825-4

3 variants:

Basic system

Foldable system

Foldable-edge system

Magnetic or screw posts

Based on the E25 system
