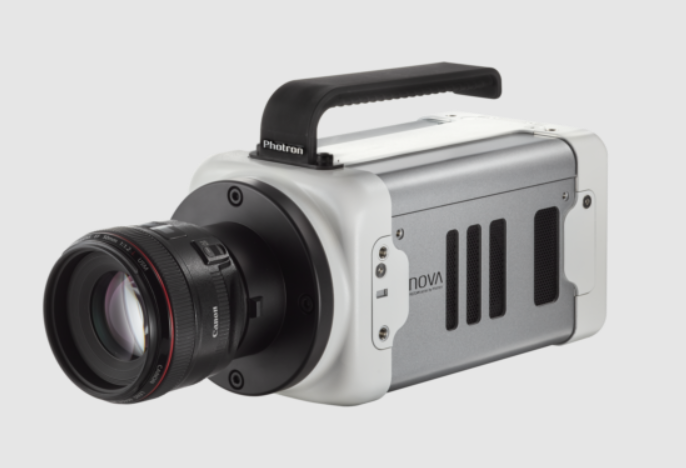

De Nova S Fastcam-serie combineert unieke CMOS-beeldsensortechnologieën en uitgebreide expertise op het gebied van digitale beeldvorming met hoge snelheid tot een camera die flexibel kan worden ingezet in een breed scala aan toepassingen.
De Nova S Fastcam is verkrijgbaar in vier verschillende modellen en biedt 12-bits beeldopnamesnelheden tot 16.000 frames per seconde (fps) bij megapixelbeeldresolutie en sluitertijden tot 0,2 µs. Opnamesnelheden tot 1.100.000 fps zijn beschikbaar bij een lagere beeldresolutie. Dit alles is beschikbaar in een camera die robuust, compact en licht is en de beste lichtgevoeligheid in zijn klasse biedt.

FASTCAM NOVA S16 / S12 / S9 / S6
- 1-megapixel CMOS-beeldsensor:
- 1024 x 1024 pixels bij 16.000 fps (model S16)
- 1024 x 1024 pixels bij 12.800 fps (model S12)
- 1024 x 1024 pixels bij 9000 fps (model S9)
- 1024 x 1024 pixels bij 6400 fps (model S6)
Maximale beeldsnelheid:
- 1.100.000 fps (Nova S16 type 1100K)
- 1.000.000 fps (Nova S12 type 1000K)
- 900.000 fps (Nova S9 type 900K)
- 800.000 fps (Nova S6 type 800K)
- 500.000 fps (Nova S16 / S12 / S9 / S6 type 500K)
- 200.000 fps (Nova S16 / S12 / S9 / S6 type 220KS)
Toonaangevende lichtgevoeligheid:
- ISO 64.000 monochroom
- ISO 16.000 kleur
Globale elektronische sluiter:
- 1 ms tot 0,2 µs onafhankelijk van de framesnelheid (sluiter van minder dan een microseconde beschikbaar onder exportbeperkingen)
Dynamisch bereik (ADC):
- 12-bits monochroom
- 36-bits kleur
Downloads
voor High-quality, high-speed camera with Ultra-low noise

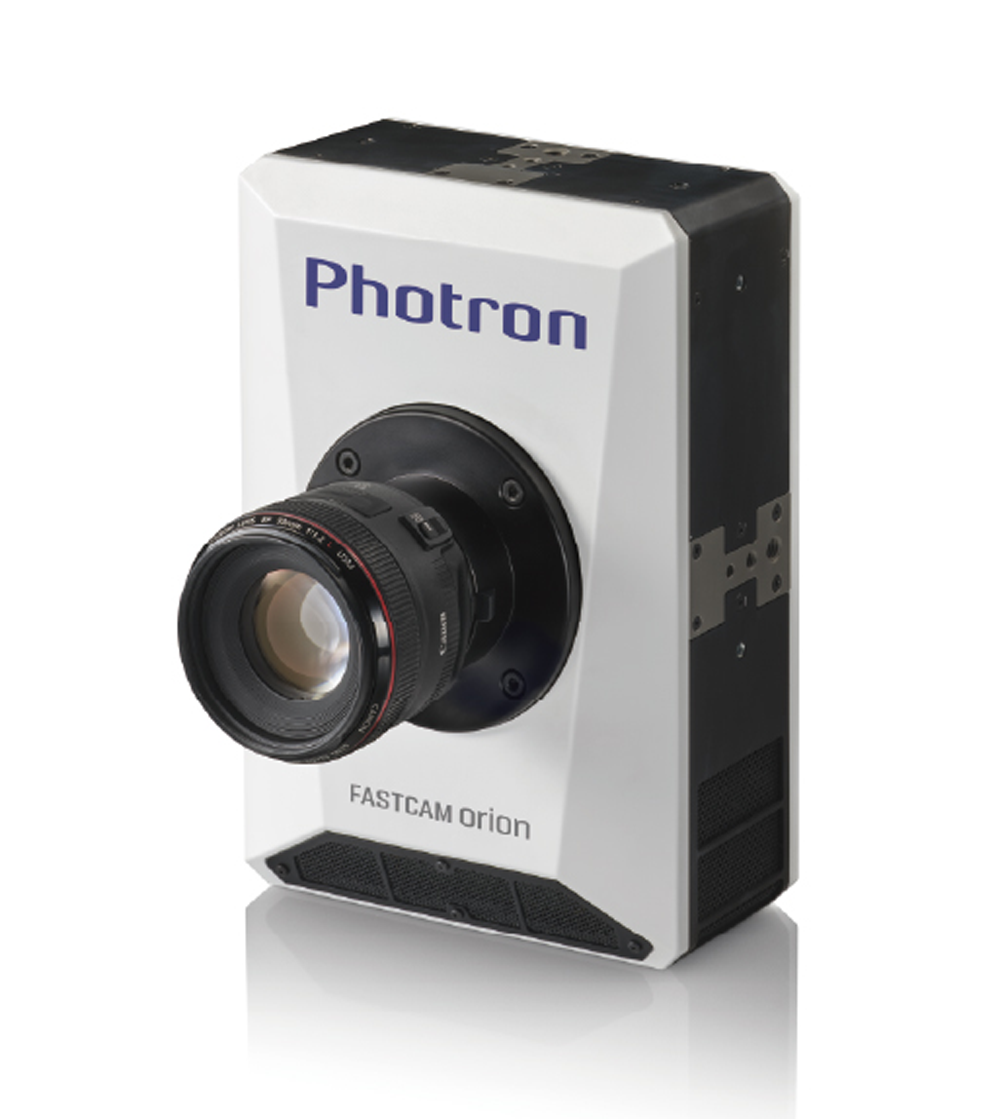

Model | FASTCAM ORION |
---|---|
Full Frame Performance | 31,250fps 1280 x 1024 pixels |
Dynamic Range (ADC) | 12-bit monochrome 36-bit color |
Maximum Frame Rate | 312,500fps* (896 x 32) |
Light Sensitivity | ISO 40,000 monochrome, ISO 10,000 color |
Minimum Exposure Time | Global electronic shutter to 1.0μsec selectable independent of frame rate267mm |
Ruggedized Mechanical Calibration Shutter | Standard feature |
Memory Capacity Options | Specifications32GB, 64GB, 128GB |
Memory Partitions | Up to 128 memory segments |
Region of Interest | Selectable in steps of 128 pixels (horizontal) x 16 pixels (vertical) |
Trigger Inputs | Selectable TTL (+/- 5V) and Switch (NO or NC) |
Trigger Delay | Programmable on selected input / output triggers: 100ns resolution |
Input / Output | Input 1 to 3: Trigger (TTL/Switch), Sync, Ready, Event, TRIG, SW IN, IRIG IN Output 1 to 3: Trigger, Sync, Ready, Rec, Exposure, IRIG OUT |
Trigger Modes | FStart, Center, End, Manual, Random Rest, Random Manual |
Time Code Input | RIG-B (selectable at beginning or end of frame exposure) |
External Sync | +3.3 to +12 V, negative polarity / positive polarity (switchable) |
Camera Control Interface | RJ45 (10GBASE-T Only) |
Image Data Display | Frame rate, resolution, shutter speed, trigger mode, date/time, status, real time / IRIG time, frame count |
Saved Image Formats | BMP, TIFF, JPEG, PNG, RAWW, MRAW, GRAW, AVI, MOV |
Supported OS | Microsoft Windows 10/11 Pro, Enterprise, Education 64-bit |
Lens Mount | F-mount (G-type lens compatible) Optional lens mounts available include Canon EF remote control mount and C-mount22 |
