As a leading supplier in ferrite technology, Ferroxcube offers a broad range of soft ferrite cores, accessories, and EMI suppression products. They also offer extensive design-in support including application information and software to help designers optimise their new designs.

A leading provider of ferrite technology

Building on the heritage of Philips Magnetic Components, Ferroxcube offers customers the highest level of support in the development of their new innovative design. As a leading supplier in ferrite-ceramic technology, they offer a broad range of soft ferrite cores, accessories, and EMI suppression products. They also offer extensive design-in support including application information and software to help designers optimise their new designs.

Their strong R&D team continues to develop materials that have lower power losses and higher saturation magnetic flux densities over a wide range of operating frequencies. Ferroxcube’s aim is to support today’s digital electronic markets with products combining miniaturisation with ever-greater functionality, using their range of high-quality, innovative products. We also offer custom services from design to production of magnetic components to meet your bespoke specifications.

Need to speak with an expert?

ferroxcube_material_banner

Power conversion

Converters operate at a wide switching frequency range, depending on the voltage, power, and cost constraints. For each range, Ferroxcube offers specific materials working from just a few kHz (inverters, high voltage systems) to tens of kHz (consumer and computer SMPS), hundreds of kHz (high-efficiency, compact converters), and even MHz. Other parameters used to select the correct material include core loss at working temperature. While standard material for industrial equipment is optimised at around 100°C, there are applications that require steady loss curves in fluctuating temperatures ranges as wide as 20°C-100°C (eg handheld converters) or 60°C-140°C (eg automotive). Ferroxcube’s various power materials cover an unparalleled broad temperature area to suit every application.

Materials for low-frequency applications < 300KHz: 3C92, 3C95, 3C96, 3C97, 3C92A, 3C98 and 3C99

Materials for high-frequency applications > 500KHz: 3F36, 3F4 and 3F46

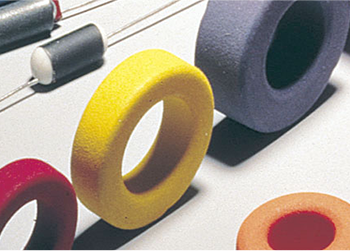

These materials are available in most of the shapes we offer (toroids, E cores, EQ cores, U cores, UR cores, PQ cores, ETD, EFD, EPX, EC, RM, pot cores, Planar, etc).

EMI suppression

EMI suppression

Electromagnetic interference (EMI) severely affects the operation of electronic equipment. Ferrites exhibit excellent EMI protection against common mode and differential conducted noise – their insertion loss is proportional to frequency and thus lets the lower frequency signals pass, but shows high attenuation to the high-frequency noise. Ferroxcube offers a wide range of materials for different frequency bands, thermal conditions and types of noise to be suppressed, with complete data and characterisation to ease the design process.

Materials can be found in most appropriate shapes for its use, including toroids for common mode chokes, cable shields, beads, rods, and several ready-to-mount solutions (such as SMD beads), through-hole wideband chokes, and encapsulated cable shields.

High-permeability materials – EMI (toroid shapes): 3E27, 3E65, 3E10, 3E12 and 3E15

High-permeability materials – EMI (rods): 3S3 and 4B1

Signal processing

Signal processing

The main applications for signal processing are telecom line filters, proximity sensors, signal and pulse transformers, delay lines, and antennae.

Ferroxcube offers outstanding technologies and products for telecommunications equipment manufacturers. For example, Ferroxcube has introduced the high-permeability material 3B46 for filter applications with high bias current. In combination with the virtually unlimited core shape variety offered by Ferroxcube, almost any technical challenge can be addressed.

Magnetics_quality_products_Ferroxcube

Special ferrites

Ferroxcube has the ability to produce small production series of custom cores by CNC machining, as well as with special processes, such as lathe, grinding, cutting, or assembling. This capability enables the production of shapes not feasible by standard processes such as multi-axial cores and large cores used in scientific, high-tech industrial, and medical applications.

One outstanding capability is their super-large cores across the complete range of materials and shapes, used, for example, for particle accelerators, including 500mm toroids, blocks, and large P-cores.

Magnetics Technology Centre

Within the Magnetics Products Technology Centre, we offer an array of services to help create customised solutions.

Magnetics-Technology-Centre



With the largest team of technical support specialists in Europe, we are at the forefront of a design led approach to delivering challenging and custom solutions for magnetic cores or components for production.

Whether your need is simple or complex, we can develop a solution to achieve your goals. With in- house experts we can design, develop and test prototypes that meet performance and environmental requirements of your application.
