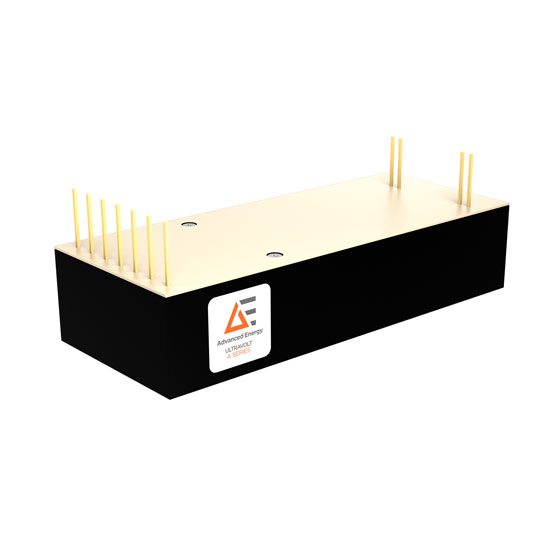

A series DC-DC converters

Precision DC-DC Regulated Supplies for Electrostatic Detectors, Mass Spectrometers, and Photomultiplier Tubes

The UltraVolt A series DC-DC converters output 62 VDC to 40 kVDC in single-output positive or negative polarities. Delivering up to 30 W with a low 100 ppm ripple from 12 or 24 VDC input, the regulated power supplies feature analog interface options of 0 to 5 VDC or 0 to 10 VDC (full-scale) for control and monitoring of high-voltage output and current.

Meeting your design requirements with a wide selection of electrical, shielding, and mechanical integration options, the UltraVolt A series is a perfect fit for applications such as electrostatic detectors, mass spectrometers, and photomultiplier tubes.

A series DC-DC converters

Features

  • Configurable high voltage output, power and polarity
  • Available 0 to 5 VDC or 0 to 10 VDC (full-scale) analog interfaces
  • Control and monitoring of high voltage output and current
  • Wide selection of electrical, shielding and mechanical integration options
  • Ripple performance as low at 100 ppm

Benefits

  • Save cost and space by selecting only the high voltage capabilities needed
  • Speed time-to-market by simplifying controls integration
  • Improve response and control of high voltage output and current
  • Expand mechanical integration, external RF protection, and interconnection possibilities
  • Increase system repeatability, resolution, and long-term reliability

Téléchargements

pour A series DC-DC converters

pdf
A Series overview
Télécharger
SpecificationsValues

Output Power (W):

4 to 30

Mounting Type:

Through Hole, Surface Mount

Minimum Output Current (A):

0.00016

Maximum Output Current (A):

Output Voltage Range (V):

0 to 40,000

Minimum Output Power (W):

4

Maximum Output Power (W):

30

Minimum Input Voltage (V):

12

Maximum Input Voltage (V):

24
