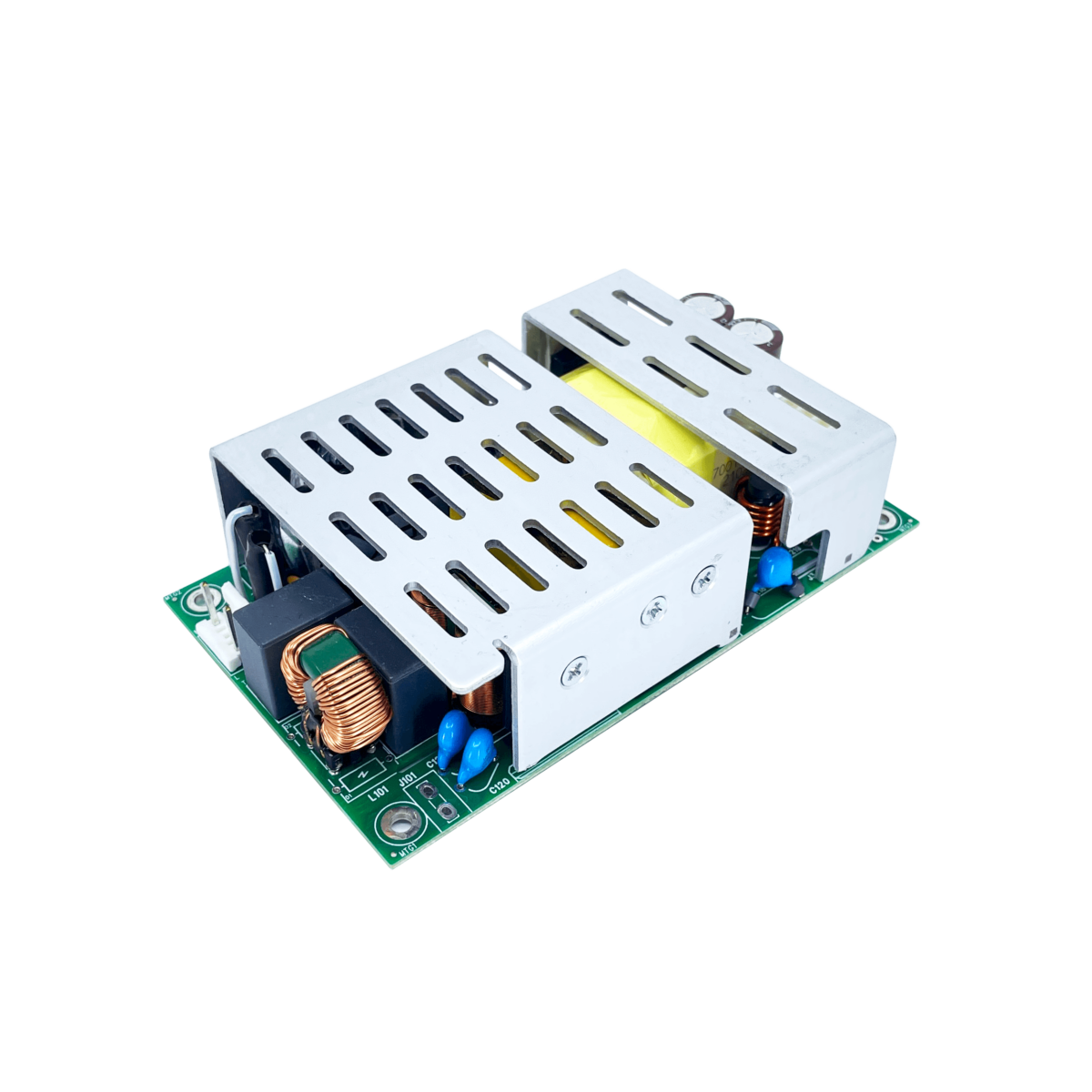

SLB300 series

Advanced Energy’s SL Power™ SLB300 series of medically-approved AC-DC power supplies offer nominal output options of 12 V, 15 V, 18 V, 24 V, 36 V, 48 V, or 56 V.

Capable of delivering up to 300 W with proper air flow, these power supplies are equipped with overvoltage, short circuit, and overload protection.

With a compact 3 x 5 x 1.4-inch design, the SLB300 series is ideal for both medical and industrial applications that require dependable power solutions.

SLB300 series

Features

  • 3” x 5” x 1.4” package
  • 300 W with 100 LFM air
  • 200 W convection cooled
  • Universal input 80 to 264 VAC

Benefits

  • EN/CSA/IEC/UL62368-1 approved
  • Approved to EN/CSA/IEC/UL60601-1-1, 3rd Ed
  • 3 years warranty
  • Fits 1U applications
  • RoHS compliant
  • Class B conducted and radiated EM

Téléchargements

pour SLB300 series

pdf
SLB300 datasheet
Télécharger
SpecificationsValue

Output power (W)

300

Length (inches)

5

Width (inches)

3

Height (inches)

1.22

Mounting type

Embedded PSU

Minimum output current (A)

5.4

Maximum output current (A)

22.5

Output voltage range (V)

12V to 5V6

Minimum output power (W)

270

Maximum output power (W)

300

Maximum input voltage (V)

264

Warranty (years)

3

Model numberMin. Voltage (V)Max. Voltage (V)Current (A)Nominal Voltage (V)Number of Outputs

SLB300S12C

12

12

22.5

12

1

SLB300S15K

15

15

20

15

1

SLB300S18K

18

18

16.7

18

1

SLB300S24C

24

24

12.5

24

1

SLB300S24K

24

24

12.5

24

1

SLB300S36C

36

36

8.3

36

1

SLB300S36K

36

36

8.3

36

1

SLB300S48C

48

48

6.3

48

1

SLB300S48K

48

48

6.3

48

1

SLB300S56K

56

56

5.4

56

1
