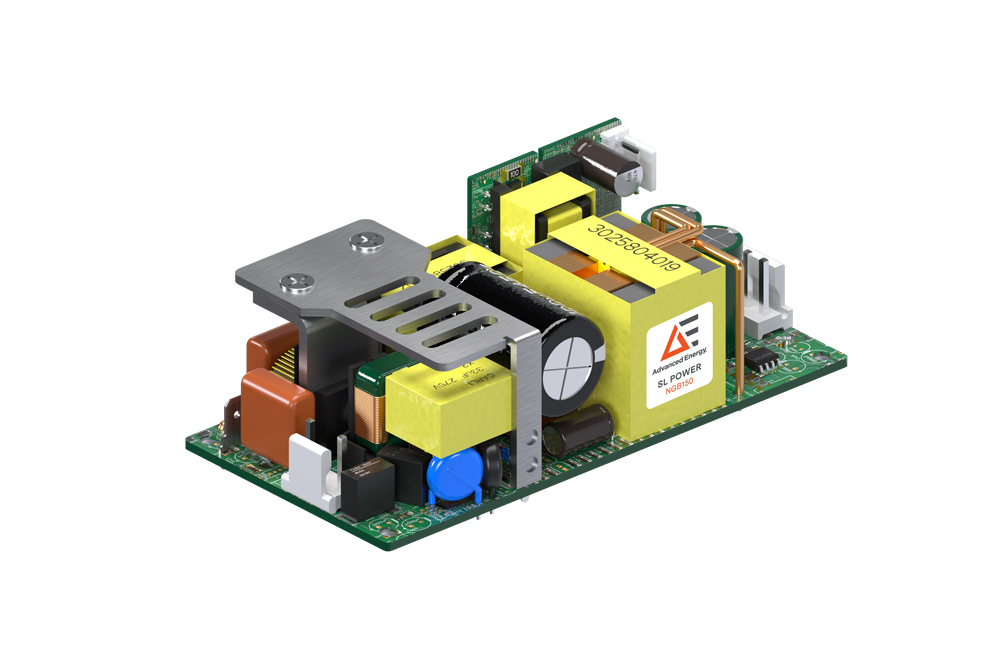

NGB150 series
- Technologie
- Alimentations open frame / U-frame
- Partner
- SL Power Electronics / Advanced Energy
The SL Power NGB150 series from Advanced Energy offers a flexible range of AC-DC embedded power solutions, providing output voltages of 12 V, 15 V, 19 V, 24 V, and 48 V, with optional 5 V standby and 12 V fan outputs.
Each model accepts a universal input of 85 to 264 VAC and delivers over 90% efficiency at full load. These compact switch-mode power supplies feature overvoltage and short-circuit protection, making them well-suited for industrial and medical applications.
Features
- 150 W max output power
- 4.0” x 2.0” x 1.26” size
- -40°C to 85°C with derating
- Optional 5 V @ 0.5 A housekeeping
- High efficiency: 90% typical
- ± 10% adjustment range
Benefits
- Industrial/medical safety
- Margin programming
- Single output
- EMI Class B
- EN61000 immunity
- UL EN62368-1/UL60601
- CSA No. 62368-1/60601
- CB Report IEC62368-1 IEC60601-1
- >7 year E-Cap life
- 3 Year warranty
Téléchargements
pour NGB150 series
| Specifications | Value |
|---|---|
Output power (W) | 150 |
Length (inches) | 4 |
Width (inches) | 2 |
Height (inches) | 1.6 |
Mounting type | Embedded PSU |
Minimum output current (A) | 3.13 |
Maximum output current (A) | 12.5 |
Output voltage range (V) | 12V to 48V |
Minimum output power (W) | 120 |
Maximum output power (W) | 150 |
Maximum input voltage (V) | 264 |
Warranty (years) | 3 |
| Model number | Min. Voltage (V) | Max. Voltage (V) | Current (A) | Nominal voltage (V) | Number of outputs |
|---|---|---|---|---|---|
NGB150S12C | 10.8 | 13.2 | 10 | 12 | 1 |
NGB150S12K | 10.8 | 13.2 | 10 | 12 | 1 |
NGB150S15C | 13.5 | 16.5 | 8 | 15 | 1 |
NGB150S15K | 13.5 | 16.5 | 8 | 15 | 1 |
NGB150S19C | 17.1 | 20.9 | 6.32 | 19 | 1 |
NGB150S19K | 17.1 | 20.9 | 6.32 | 19 | 1 |
NGB150S24C | 21.6 | 26.4 | 5 | 24 | 1 |
NGB150S24K | 21.6 | 26.4 | 5 | 24 | 1 |
NGB150S48C | 43.2 | 52.8 | 2.5 | 48 | 1 |
NGB150S48K | 43.2 | 52.8 | 2.5 | 48 | 1 |
