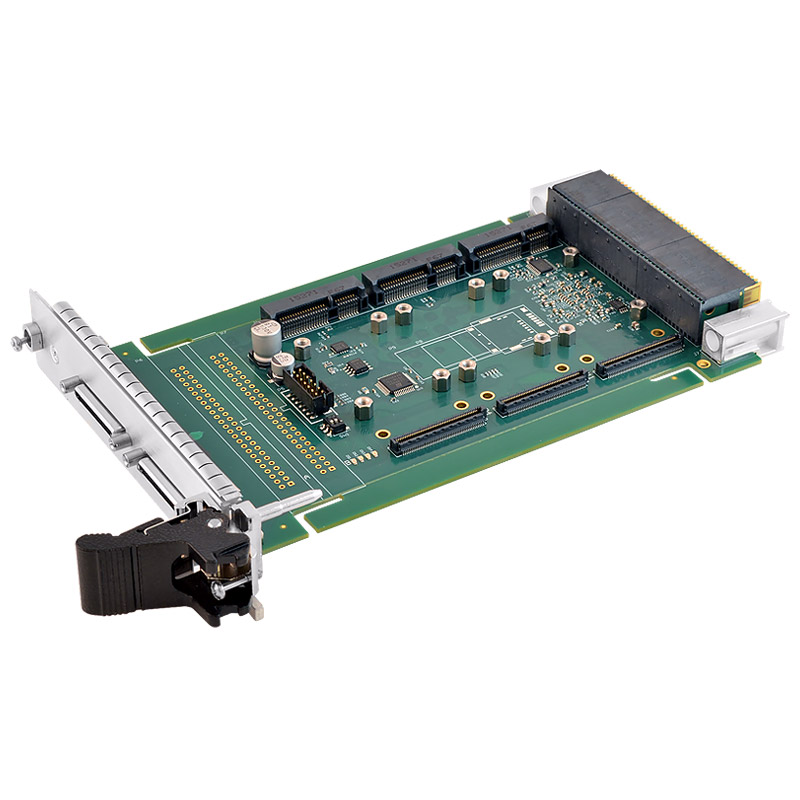

VPX 3U and 6U Rugged Cards

Technologie
VPX
Partner
ADLINK

La gamme ADLINK de produits au standard VPX (Versatile Performance Switching), VITA 46.x, VITA 48 et VITA 65, au format Eurocard, supporte les tissus de commutation à travers un connecteur à haute vitesse. Ces produits sont destinés aux systèmes embarqués utilisés dans des environnements extrêmement sévères où taille, poids et puissance (SWaP) sont cruciales.

La gamme VPX d’ADLINK de produits commerciaux standard (COTS) permet un déploiement rapide avec un temps de développement réduit par rapport aux systèmes propriétaires.

Les lames haute performance VPX d’ADLINK sont disponibles en formats 3U et 6U. Tous les produits VPX d’ADLINK sont Extreme Rugged™ et conviennent aux applications critiques telles que le radar, le sonar, le renseignement, la surveillance et la reconnaissance (ISR).

VPX 3U and 6U Rugged Cards

Caractéristiques de la gamme

Un aperçu de ce que cette gamme offre

  • Support Open VPX VITA 65 à long cycle de vie
  • Support pour VITA 46.x et VITA 48
  • Options 3U et 6U avec une gamme de processeurs Intel
  • Options de refroidissement par conduction
  • Support GPGPU avec chipsets NVIDIA à long cycle de vie
  • Certifié SOSA
  • Solutions puissantes pour l’IA sur le champ de bataille
  • Kits de développement/d’initiation disponibles
  • Options de conception sur mesure
  • Solutions de gammes testées et certifiées

Que contient cette gamme?

Toutes les variantes de la gamme et une comparaison de ce qu’elles offrent

ModelCPURAMKey featuresForm factor

VPX-3020

Intel® Xeon® processor E-2254ML and 9th Gen Intel® Core™ i3

Up to 16Gb ECC soldered DDR4

  • Up to 64GB SATA SLC SSD option

  • Up to PCIe x16 Gen3 interface supporting non-transparent bridge

  • One XMC expansion slot, PCIe x8 Gen3 with rear I/O to P2

  • Conduction or air cooled with conformal coating

3U

VPX-3010

  • Intel® Xeon® processor D-1500 SoC up to 12 cores (formerly "Broadwell-DE")

Up to 16Gb ECC soldered DDR4

  • Dual 10G-KR, up to three 1G Ethernet ports
  • Up to PCIe x16 Gen3 interface supporting non-transparent bridge
  • One XMC expansion slot, PCIe x8 Gen3 with rear I/O to P2
  • Conduction or air cooled with conformal coating

3U

VPX3001

Quad-core 3rd generation Intel® Core™ i7 processor

Up to 8Gb ECC soldered DDR3

  • Two PCIe x4 Gen2 data plane to P1 with NTB
  • Two 1000BASE-T or two 1000BASE-BX to P1
  • One XMC.3 PCIe x8 Gen2 with rear I/O to P2

3U

ModelCPURAMKey featuresForm factor

VPX6H10

  • Intel® Xeon® processor D-1559, 12 cores

Up to 32Gb DDR4

  • Onboard SLC SSD up to 64GB SATA 6Gb/s
  • NVIDIA Quadro GP107 (Pascal), 512 CUDA cores, 4GB GDDR5 memory
  • 2x 10G-KX4, 2x 10G-KR and 4x 1GbE
  • 1x PCIe x16 Gen3, 2x PCIe x4 and 1x PCIe x8 Gen3 to XMC

6U

VPX6100

Intel® Xeon® D-2187NT processor SoC, 16 cores

Up to 16Gb DDR4 per node

  • Dual 10GBASE-KR and dual 1000BASE-KX ports per node
  • PCIe x16 Gen3 interface supporting non-transparent bridge
  • 32GB SLC NAND SATA flash storage per node

6U

VPX6011

Intel® Xeon® processor D-1500 SoC with up to 12 cores

Up to 32Gb DDR4

  • Up to PCIe x16 Gen3 interface
  • One XMC expansion slot, PCIe x8 Gen3 with rear I/O to P3

6U

VPX6020

Quad-core 7th gen Intel® Core™ i7 processor

16GB DDR4-2400 soldered ECC SDRAM

  • 4x SRIO 2.1 by 4
  • Configurable PCIe x16 Gen3 supporting NTB
  • 2x 1000BASE-T and 2x 1000BASE-BX

6U

VPX6000

Dual Quad-Core 4th generation Intel® Core™ i7

Dual channel DDR3L ECC memory soldered, 16GB per node

  • Supports three independent displays
  • Supports storage upgrade via mezzanine card
  • Remote management support

6U

ModelCPURAMKey featuresForm factor

VPX3-P5000 Series

NVIDIA Pascal architecture GP104/GP107 GPU with up to 2048 CUDA cores

Up to 16GB GDDR5 Memory with NVIDIA GPUDirect™ DMA technology

  • PCIe x16 Gen3 to P1
  • Four DisplayPort 1.4 outputs
  • A.I. training framework support TensorFlow, Pytorch, Caffe, MXNet, MATLAB, Chainer, PaddlePaddle
  • A.I. inference engine support TensorRT

3U

VPX-TF3090

3U VPX test frame compliant with VITA 46 and OpenVPX standard

  • 3U VPX test frame compliant with VITA 46 and OpenVPX standard
  • Up to 9 slots for 3U VPX conduction cooled blades
  • Enables board-to-board communication validation
  • Optional 3-slot backplane
  • Standard BIOS and firmware

3U
