X300 Wi-Fi Gateway

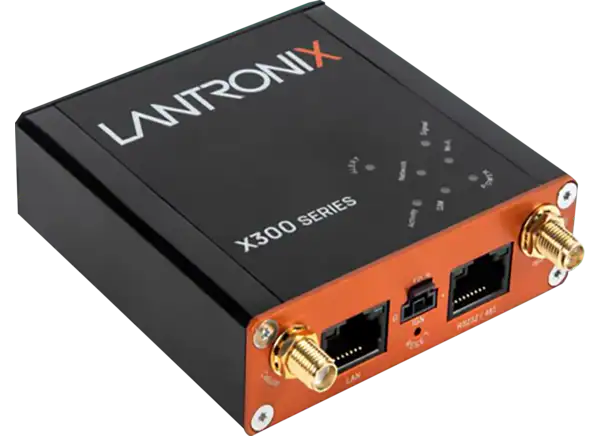

The Lantronix X300 is a compact (79 x 79 mm), industrial-grade IoT gateway ideal for mission-critical deployments. It combines LTE M or Cat-1 cellular, Wi-Fi, Bluetooth/BLE, Ethernet, and serial interfaces in one rugged device. Included are Percepxion™ cloud management, embedded SIM with data plans, and expert support through LEVEL Services.

Security is ensured with InfiniShield™, featuring a secure element, secure boot, and encrypted communications. Powered by the Linux-based ePACK software suite, it supports edge processing and application customisation. Optional BLE sensors enable monitoring of temperature, humidity, motion, and location.

X300 Wi-Fi Gateway

Range features

An overview of what’s in the range

  • Compact, industrial-grade design
  • Versatile interfaces (cellular, Wi-Fi, BLE, Ethernet, serial)
  • Advanced cybersecurity with InfiniShield™
  • Percepxion™ device management
  • Built-in connectivity services (SIM & data)
  • Expert support & limited lifetime warranty
  • Fast hardware replacement

Téléchargements

pour X300 Wi-Fi Gateway

pdf
X300 series compact cellular IoT gateway solution
Télécharger

What’s in this range?

All the variants in the range and a comparison of what they offer

CategorySpecification

Cellular

LTE Cat M1 – X303 with 2G fallback mode LTE Cat1 – X304 with 3G or 2G fallback mode options Wi-Fi & Bluetooth operation

Wi-Fi & Bluetooth operation

Wi-Fi 5 and Bluetooth/BLE 5.0; via one (X303) or two (X300, X304) RP-SMA antenna connector

Ethernet

One LAN port; 10/100BASE-T; via a RJ-45 header fitted with two LEDs

Serial communication

RS-232 6-signal (Rx, Tx, RTS, CTS, either DSR or DCD, DTR) implementation; via an RJ-45 header RS-485 half or full duplex, via RJ-45 header Switchable by software

SIM

Lantronix Connectivity Services embedded MFF SIM; auxiliary mini-SIM holder

Location services

Qualcomm® IZat™ gen. 8C gps One; via a dedicated SMA antenna connector (X304 only)

Temperature & humidity ranges

Operating: -30°C ~ +70°C; up to 95% RH Storage: -40°C ~ +85°C; up to 95% RH

Power

Input voltage: 9 ~ 30 V DC 3-pin Nano-Fit™ header Digital Input (Ignition): One (1) digital input, on the second pin of the 3-pin header Input: 0 ~ 2.5 V DC => ZERO; 3 ~ 50 V DC => ONE
